Preparation
Before starting, ensure the vehicle is on a level alignment rack. Check tire pressures and inspect for any obvious suspension damage or excessive tire wear.
Professional 3D Wheel Alignment Machine: Gatmatic & Industry Models
Your comprehensive guide to understanding, purchasing, and maintaining high-precision wheel alignment equipment for automotive workshops.
What is a 3D Wheel Alignment Machine?
A 3D wheel alignment machine is a sophisticated piece of automotive service equipment used to measure and adjust the angles of a vehicle's wheels to the manufacturer's specifications. It utilizes high-resolution cameras and sensors to create a three-dimensional model of the wheel positions, ensuring unparalleled accuracy in correcting camber, caster, and toe angles. Proper alignment is crucial for vehicle safety, tire longevity, fuel efficiency, and optimal handling.
How It Works
- Sensor Mounting: Targets or sensors are securely attached to all four wheels using specialized clamps.
- 3D Imaging: Cameras mounted on a tower capture the position and orientation of the targets, creating a precise 3D image of the wheel assembly.
- Data Analysis: The system's computer software compares the live measurements against a vast database of vehicle manufacturer specifications.
- Adjustment Guidance: The technician is guided through the necessary adjustments to the suspension and steering components to bring all angles into the optimal range.
- Verification & Report: A final measurement is taken, and a detailed report showing before-and-after results is generated for the customer.
Leading Brands and Models
The market offers a range of alignment machines from entry-level to premium dealership-grade systems. Below is a comparison of notable brands and their typical applications.
| Brand | Popular Models | Key Features | Target Market |
|---|---|---|---|
| Gatmatic | 3D Auto Repair Wheel Aligner | Efficient computerized LCD display, cost-effective solution for general repair shops. | Small to medium independent garages |
| Hunter | HawkEye Elite, D2 Max | Patented camera technology, fast measurement times (e.g., 70 seconds), OEM-approved, advanced ADAS integration. | High-volume dealerships, tire chains, and specialty shops |
| Hofmann | geoliner 770, geoliner 660 | Compact footprint, quick boot-up, live readings, and automatic camera tracking. | General repair and high-volume specialty shops |
| Corghi | Various Clampless Models | High efficiency, self-centering clamps, ideal for fast-paced environments, advanced diagnostic balancers. | Small to medium shops prioritizing speed and ease of use |
| Launch | X-831E | Dynamic 3D measurement, user-friendly interface, comprehensive vehicle database. | Independent garages and tire workshops |
Step-by-Step Usage Guide
Mounting Sensors
Attach the wheel clamps to all four wheels, being careful not to damage the rims. Securely fasten the 3D targets or sensors to the clamps, ensuring they are properly aligned with the wheel's center.
Entering Vehicle Data
Input the vehicle's make, model, year, and sometimes VIN into the alignment machine's computer. This loads the correct manufacturer specifications for the alignment.
Taking Measurements

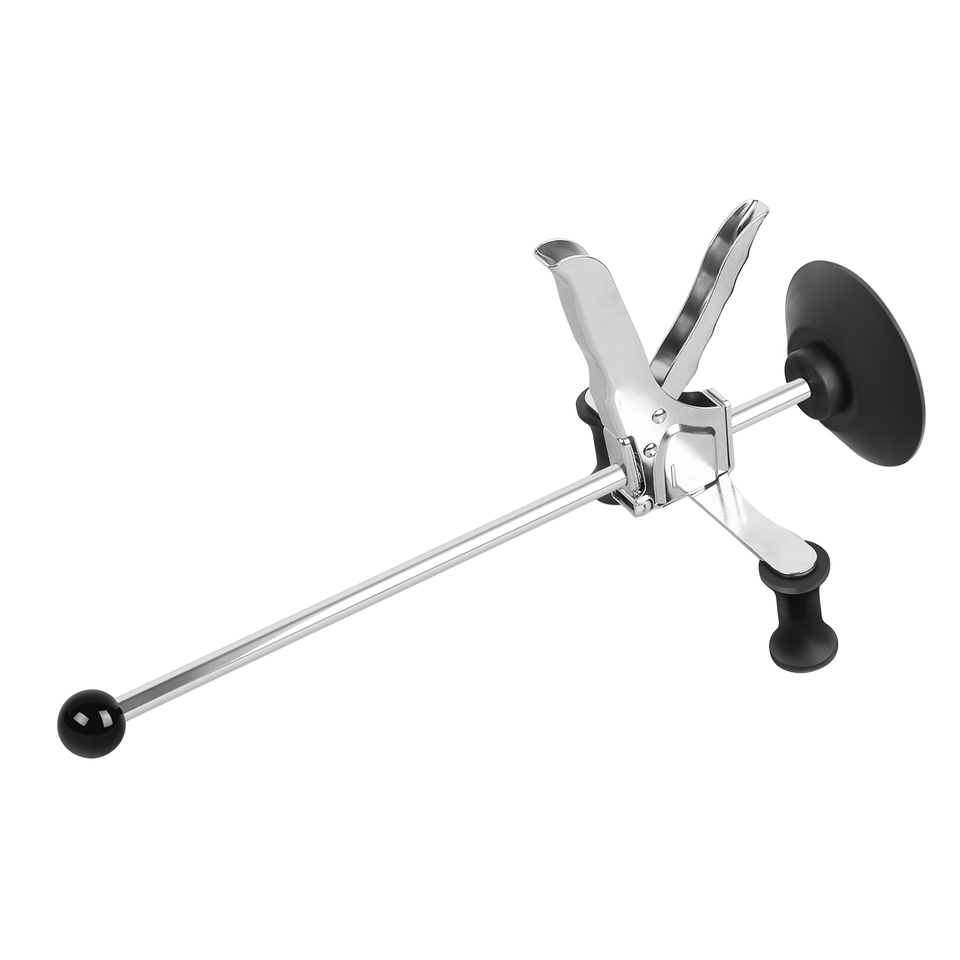

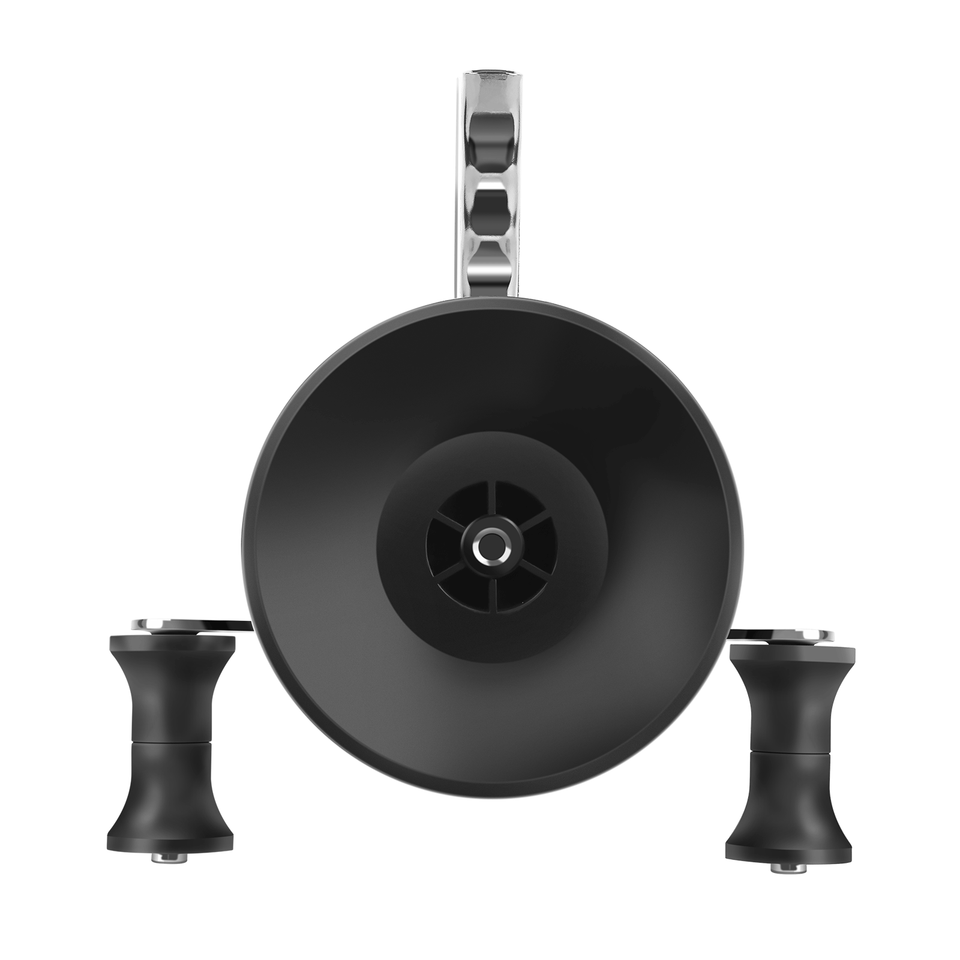

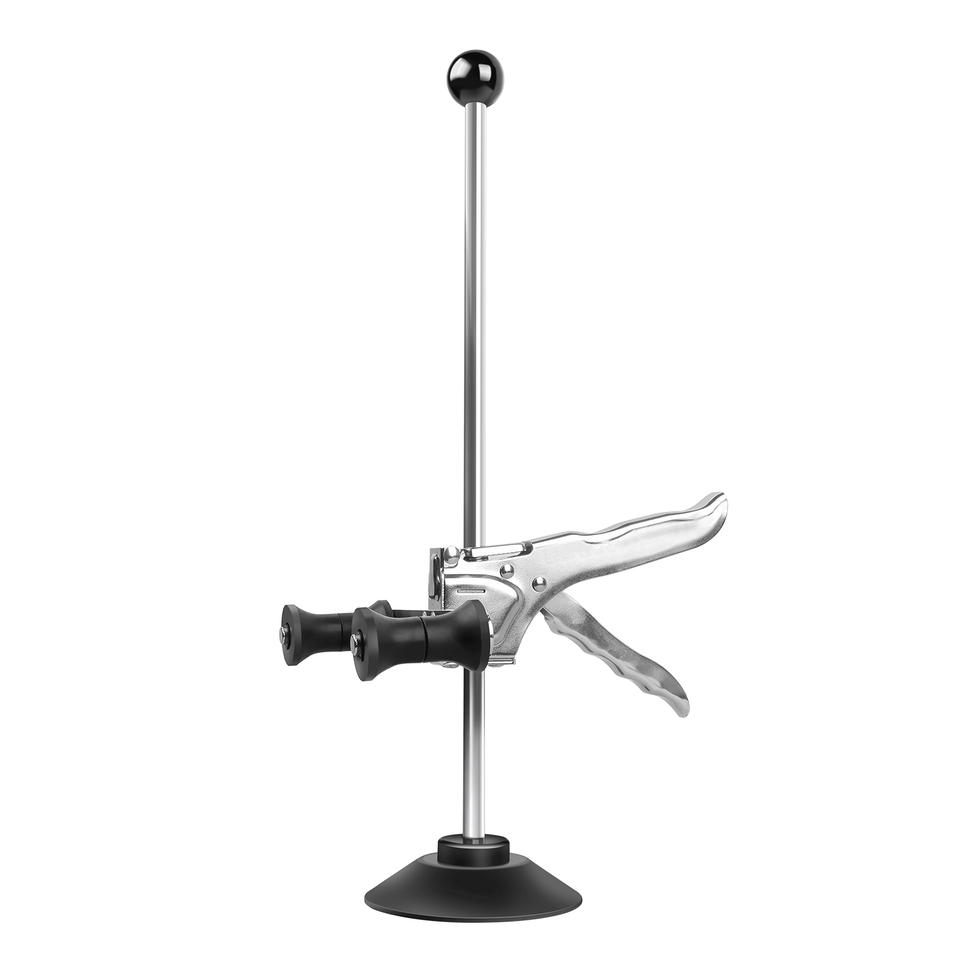

Roll the vehicle back and forth to settle the suspension. Follow the on-screen prompts to turn the steering wheel to specific angles. The 3D cameras will capture the initial alignment data.
Making Adjustments
The software will display the current angles compared to the desired specs. Adjust the tie rods (for toe), control arms, or camber bolts as guided by the machine to bring the values into the green "acceptable" range.
Finalizing the Job
Perform a final measurement to confirm all adjustments are correct. Remove the sensors and clamps. Print the alignment report and conduct a test drive to verify the vehicle drives straight and handles properly.
Buying Guide: How to Choose the Right Machine
- Shop Volume & Vehicle Type: High-volume shops need faster, more robust systems like Hunter or Hofmann. Small shops may prefer cost-effective models from Gatmatic or Corghi. Ensure the machine can handle the vehicle types you service (cars, trucks, SUVs).
- Accuracy & Technology: Look for machines with high-resolution cameras and a reputation for precision. 3D imaging is the industry standard for accuracy.
- ADAS Compatibility: Modern vehicles require ADAS (Advanced Driver Assistance Systems) calibration after an alignment. Investing in a machine that can integrate with ADAS tools is crucial for future-proofing your business.
- Software & Database: Ensure the machine has a comprehensive and regularly updated vehicle database. User-friendly software reduces technician training time and errors.
- Brand Support & Warranty: Choose a manufacturer with a strong reputation for technical support, training, and readily available spare parts. A comprehensive warranty (typically 12 months or more) is essential.
-
Budget:
- Entry-Level / Portable: $3,000 - $8,000
- Mid-Range Professional: $8,000 - $15,000
- Premium / Dealership-Grade: $15,000 - $30,000+
Reviews, Maintenance, and After-Sales Support
User Reviews & Ratings
Professional mechanics often praise Hunter and Hofmann for their reliability and speed, while brands like Gatmatic and Launch are valued for providing excellent functionality at a more accessible price point for smaller businesses. When reading reviews, pay attention to comments about software stability, customer support responsiveness, and long-term durability.
Maintenance & Calibration
To ensure ongoing accuracy, regular maintenance is critical. It is recommended to have the alignment machine calibrated at least once a year by a certified engineer. Keep the cameras and lenses clean, and promptly install any software updates provided by the manufacturer to access new vehicle data and improved features.
After-Sales Services
Reputable suppliers offer comprehensive after-sales packages, including:
- Technical Support: Hotline or online support for troubleshooting.
- On-Site Training: Training sessions for technicians to maximize the use of the equipment.
- Warranty Coverage: Coverage for parts and labor, typically for 12 months.
- Spare Parts Availability: Quick access to replacement sensors, clamps, and other components.
- Software Updates: Regular database and software upgrades, often included for a period or as a subscription.
Frequently Asked Questions (FAQ)
What is the difference between 3D and laser wheel alignment?
3D alignment uses cameras to image targets on the wheels, providing a more comprehensive and accurate measurement of all alignment angles. Laser alignment uses laser beams and mirrors, which can be less accurate and more susceptible to environmental factors.
How often should a wheel alignment be performed?
It is generally recommended to check alignment annually or whenever you notice signs of misalignment, such as pulling to one side, uneven tire wear, or an off-center steering wheel. Many shops also recommend an alignment with every new set of tires.
Can I perform a wheel alignment myself?
While basic toe adjustments are possible with simple tools, a precise, multi-angle alignment requires a professional machine operated by a trained technician. DIY attempts without proper equipment often lead to incorrect settings and accelerated tire wear.
What are the signs that my car needs a wheel alignment?
Common signs include the vehicle pulling to the left or right, an off-center steering wheel when driving straight, uneven or rapid tire wear, and a vibrating steering wheel.
