1. Voltage Compatibility
Most cars operate on a 12V system, while larger trucks and boats may use 24V. The DS1011's wide voltage range (12V-24V) makes it compatible with almost all vehicles, eliminating the risk of damage from incorrect voltage.

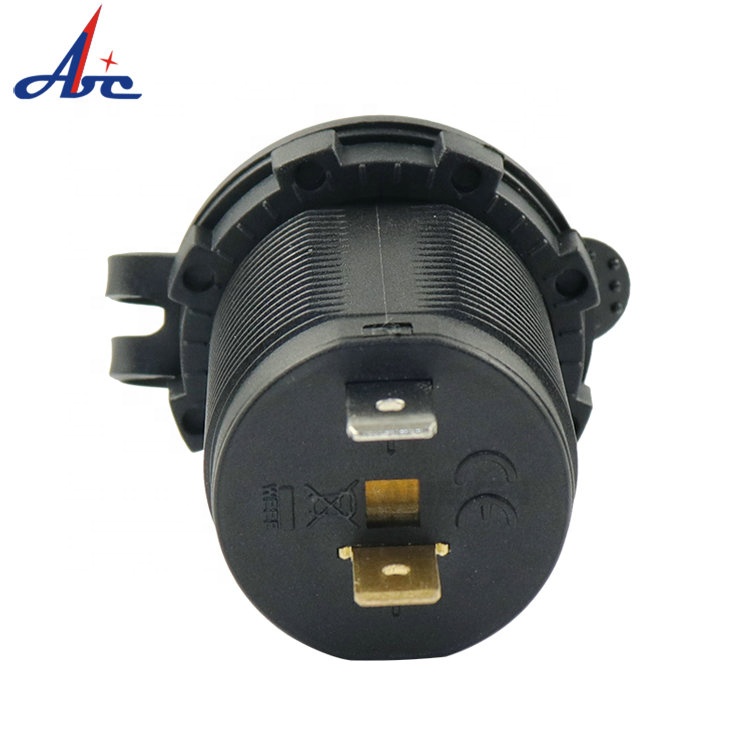

ABILKEEN DS1011: The Ultimate Waterproof Car Cigarette Lighter Socket
A comprehensive guide to the specifications, usage, and purchasing considerations for the versatile DS1011 power socket.
Product Overview
The ABILKEEN DS1011 is a high-quality, panel-mounted cigarette lighter socket designed for automotive, marine, and outdoor applications. Known for its robust construction and IP65 waterproof rating, it provides a reliable power source for a wide range of 12V and 24V devices. It serves as a foundational power outlet, allowing users to connect various chargers and adapters.
Core Specifications
| Feature | Specification |
|---|---|
| Brand Name | ABILKEEN |
| Model Number | DS1011 |
| Input Voltage | DC 12V - 24V (Universal) |
| Rated Current | Up to 10A - 15A (depending on model variant) |
| IP Rating | IP65 (Dust-tight and protected against water jets) |
| Material | ABS Plastic Housing, Phosphor Bronze/Copper Alloy Contacts |
| Place of Origin | Zhejiang, China |
| Warranty | Typically 2 Years (varies by supplier) |
Usage Scenarios & Applications
This socket is not just for lighting cigarettes; it's a versatile auxiliary power outlet (APO). Here are common use cases:
- In-Car Charging: Power USB adapters for smartphones, tablets, dash cams, and GPS units.
- Marine & Boating: Due to its waterproof nature, it's ideal for boats and yachts to power navigation equipment or portable fridges.
- Recreational Vehicles (RVs/ATVs): Provides power for lighting, small appliances, or entertainment systems while off-grid.
- Heavy-Duty Equipment: Can be installed in trucks, tractors, or construction machinery to power air compressors or work lights.
- Emergency Power: When connected to a battery, it can serve as a 12V power source for inverters or emergency equipment.
Buying Guide: What to Consider
2. Amperage Requirements
Check the power requirements of the devices you plan to use. A standard phone charger draws about 1-2A, while a car refrigerator or air compressor might require 5-10A. Ensure the socket's rated amperage (typically 10A-15A) meets your needs.
3. Waterproof vs. Standard Sockets
If you plan to use the socket in an open-air environment (like a boat, motorcycle, or off-road vehicle), the IP65 rating is crucial. It protects the internal components from rain, dust, and splashes, ensuring safe operation.
4. Installation & Fit

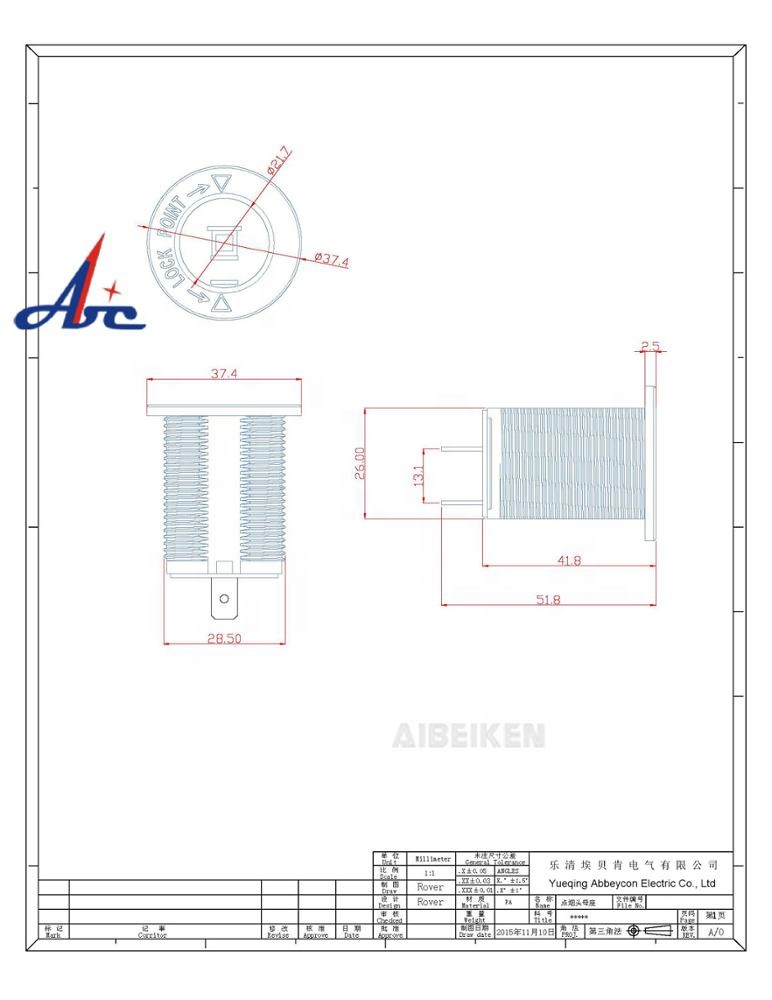

This is a panel-mount socket, meaning it requires a drilled hole for installation. Standard mounting hole sizes are often around 1-1/8 inch (approx. 28-30mm). Verify the dimensions and ensure you have the necessary tools and space for installation.
Reviews, Support & After-Sales
User Reviews Summary
Based on aggregated reviews from various platforms, users frequently praise the DS1011 for:
- Durability: The high-quality materials withstand harsh conditions.
- Secure Fit: Plugs hold firmly in place without loosening.
- Ease of Installation: Simple wiring with clear polarity markings.
Some considerations include ensuring proper wire gauge for high-current applications and checking the tightness of the rear connections.
After-Sales Service & Warranty
ABILKEEN typically offers a 2-year warranty on this product. The after-sales process generally involves:
- Registration: Keep your proof of purchase (invoice) for warranty claims.
- Troubleshooting: Contact the supplier for initial diagnostics (e.g., checking fuses, wiring).
- Claim Process: If a manufacturing defect is confirmed, the supplier will typically repair or replace the unit free of charge. Out-of-warranty repairs may be available at a cost.
For complex installations or technical issues, consulting a licensed electrician is recommended.
Installation & Maintenance Guide
Installation Steps
- Disconnect Power: Always disconnect the vehicle's battery before starting any electrical work.
- Drill Mounting Hole: Drill a hole of the specified diameter in the chosen panel.
- Wire Connection: Connect the positive wire (usually marked with a "+" or red) to the center terminal. Connect the negative wire (usually "-" or black) to the outer shell or designated terminal.
- Secure the Socket: Insert the socket into the hole and secure it with the provided nut or mounting bracket.
- Test the Connection: Reconnect the battery and test the socket with a simple device to ensure proper polarity and function.
Maintenance & Precautions
- Regular Inspection: Periodically check for loose connections, corrosion, or damage to the socket or wires.
- Waterproof Cap: Always keep the rubber cap closed when the socket is not in use to maintain its IP65 rating.
- Avoid Overloading: Do not exceed the maximum rated amperage to prevent overheating and potential fire hazards.
- Cleanliness: Clean the socket contacts with a dry cloth to ensure good conductivity.
Common Search Terms & Related Products
To find more information or compare options, consider these search terms and related products:
Common Search Keywords
- 12v cigarette lighter socket waterproof
- IP65 car power outlet
- marine cigarette lighter socket
- DS1011 panel mount charger
- 12/24v universal car socket
- cigarette lighter socket with cover
- car accessory power outlet
- boat cigarette lighter socket
- motorcycle usb charger socket
- heavy duty 12v socket
Related Products Comparison
When searching, you might encounter similar models. Here’s a quick comparison:
- DS1011 vs. DS2013: The DS2013 often includes a built-in USB charging port, while the DS1011 is a pure power socket for use with separate adapters.
- ABILKEEN vs. Blue Sea Systems: Brands like Blue Sea offer similar marine-grade sockets (e.g., Model 1011) which are often priced higher and are known for rigorous marine-specific certifications.
- Basic vs. Waterproof: Standard, non-waterproof sockets are cheaper but unsuitable for outdoor or marine environments.
Disclaimer: This information is based on publicly available product specifications and user reviews. Always refer to the official manufacturer's documentation for the most accurate and up-to-date information. Installation should be performed by a qualified professional.
