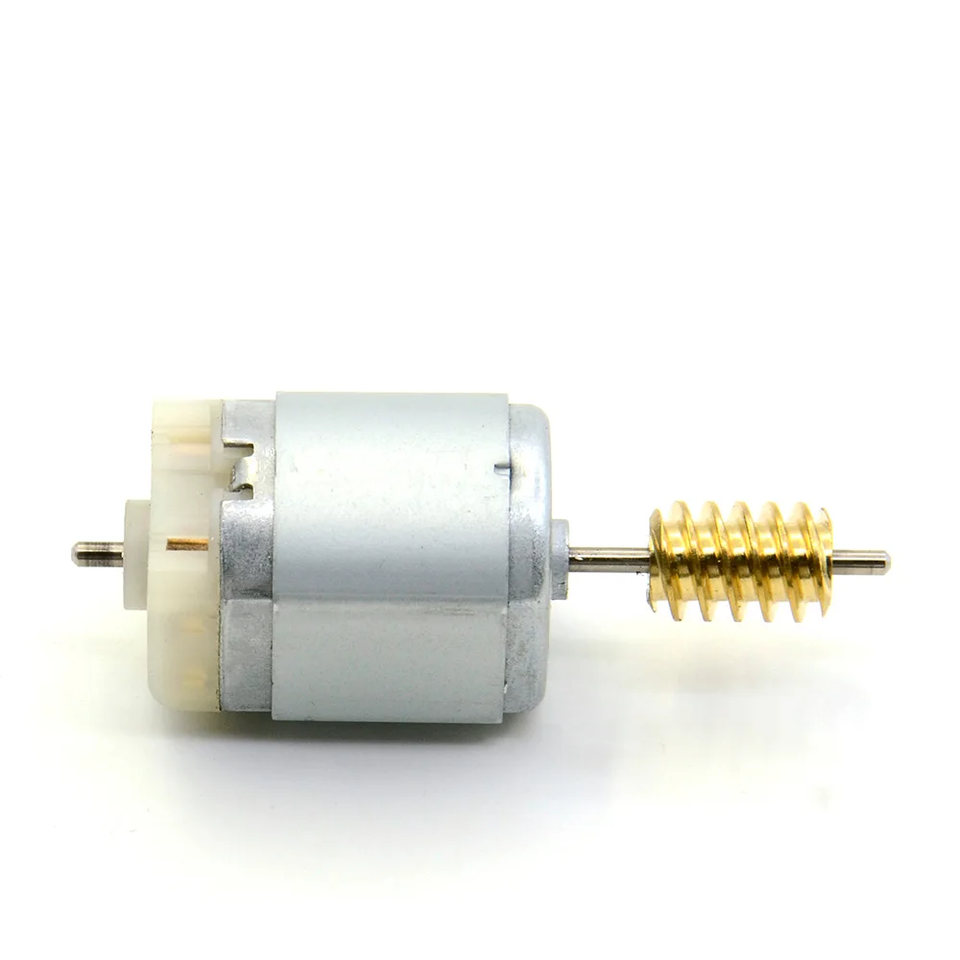

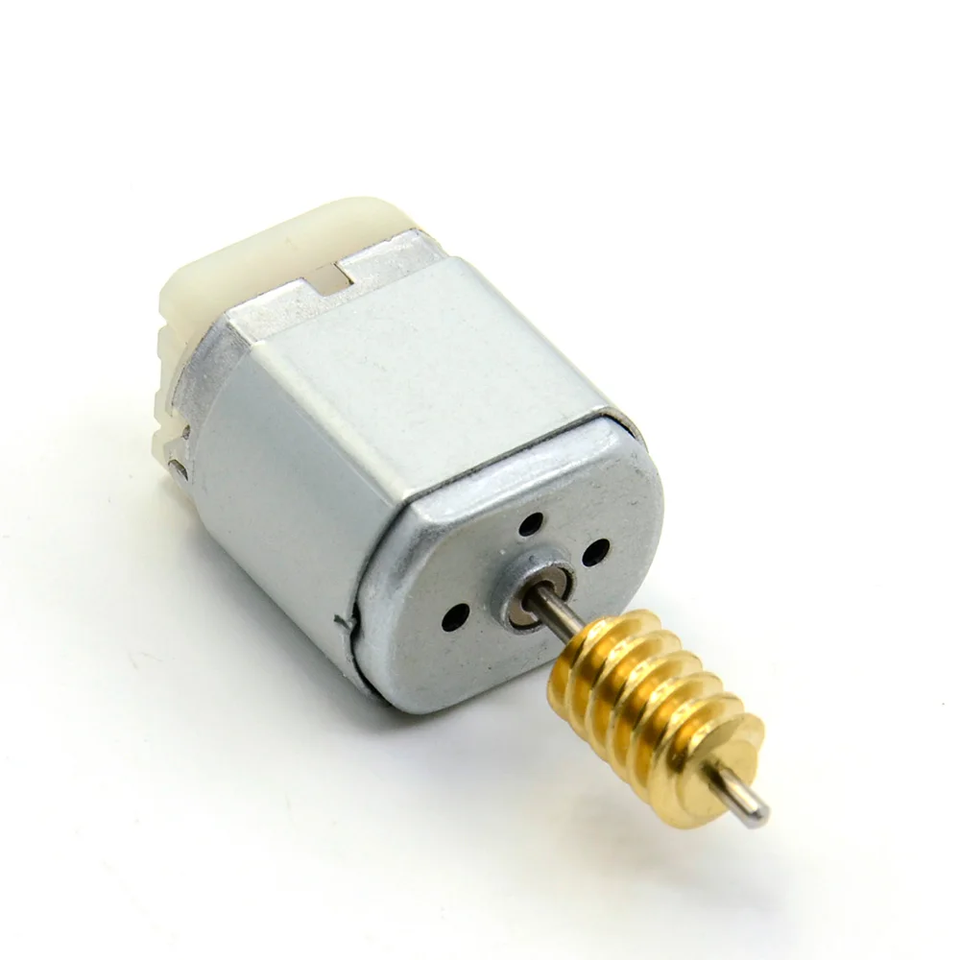

ESL/ELV Motor Steering Lock Wheel for Mercedes-Benz W204, W207, W212 Models
Brand: ATDIAG & Other Aftermarket Brands | Model Number: ESL/ELV Motor (OEM Ref: JXF280-402)
Core Function: Electronic Steering Column Lock (ESL/ELV) Replacement Component
Product Overview
The ESL (Electronic Steering Lock) or ELV (Elektronisches Lenksäulen Verriegelung) motor is a critical security component in modern Mercedes-Benz vehicles. This specific motor is designed to replace the faulty unit in models such as the W204 (C-Class), W207 (E-Class Coupé/Cabriolet), and W212 (E-Class). Over time, the internal motor or its control board can fail, leading to a complete vehicle lockdown. This replacement motor offers a cost-effective solution to restore steering unlock functionality and get your car back on the road.
Common Symptoms of a Failing ESL/ELV Motor
- No Ignition Lights: When you turn the key, the dashboard remains dark.
- Steering Wheel Locked: The steering wheel cannot be unlocked, even with the key inserted.
- Car Won't Start: The vehicle does not crank and shows no response when turning the key.
- Clicking Noise: A repetitive clicking or ticking sound comes from the steering column area when attempting to turn the key.
- Fault Codes: Diagnostic scanners may show codes like A25464, A25407, A25408, or A22449 related to the steering lock.
Technical Specifications & Compatibility
| Attribute | Specification |
|---|---|
| Brand Name | ATDIAG (Various aftermarket suppliers available) |
| Model Number | ESL/ELV Motor (OEM Ref: JXF280-402) |
| Voltage | 12V DC |
| Warranty | Typically 1 year from aftermarket suppliers |
| Place of Origin | Guangdong, China (Common for aftermarket parts) |
| Weight | Approx. 0.06 kg |
Applicable Mercedes-Benz Models
- C-Class (W204): C180, C200, C250, C280, C300, C350, C63 AMG (2007-2014)
- E-Class (W212): E200, E220, E250, E260, E300, E350, E550, E63 (2009-2016)
- E-Class Coupé/Cabriolet (C207/A207): E350, E550 (2009-2011)
- GLK-Class (X204): GLK200, GLK220, GLK250, GLK300, GLK350 (2010-2015)
- SLK-Class (R172): SLK200, SLK250, SLK350 (2011-2015)
Buying Guide
When purchasing an ESL/ELV motor, it's crucial to ensure compatibility and quality.
Price Range
Prices vary significantly based on the supplier and quantity. On platforms like 6688789, prices can range from $2.99 to $34.17 per unit for wholesale orders. For single-unit purchases on eBay or other retail sites, expect to pay between $15 and $50.
How to Choose a Supplier
- Store Rating: Look for suppliers with a high rating (e.g., 4.5 stars or above).
- Transaction History: Check the number of units sold and customer feedback.
- Warranty Policy: Confirm the warranty period and terms for returns or replacements.
- Certification: Some suppliers offer CE or ISO certification, indicating higher quality control.
Usage & Installation Guide
Warning: Installation requires advanced automotive repair skills. Incorrect installation can damage the steering column or compromise vehicle security. It is recommended to consult a professional mechanic.
General Steps (Professional):
- Diagnosis: Use a professional diagnostic tool (like VVDI MB, Abrites, or CGDI) to confirm the ESL motor is the cause of the fault.
- Disassembly: Remove the steering column shrouds and locate the ESL unit attached to the steering column.
- Replacement: Unscrew the faulty motor unit and replace it with the new one. In some cases, if the steering is locked, special procedures (like drilling a small hole to manually retract the lock pin) may be required.
- Re-programming: After installation, the new motor or the entire ESL unit may need to be coded to the vehicle's EIS (Electronic Ignition Switch) using specialized software.
- Testing: Test the steering lock and unlock function with the key to ensure proper operation.
Alternative Solution: ESL Emulator
Instead of replacing the motor, many owners opt for an ESL Emulator. This device bypasses the faulty lock by simulating its signals, tricking the car into thinking the steering lock is functioning. This is often a cheaper and more permanent fix.
After-Sales Service & Warranty
- Warranty: Most aftermarket suppliers offer a 12-month warranty on the motor.
- Return Policy: Check the supplier's policy on returns for defective or incorrect items.
- Technical Support: While direct technical support may be limited for DIY buyers, professional mechanics can rely on supplier documentation.
Frequently Asked Questions (FAQ)
Q: What causes the ESL motor to fail?
A: Common causes include wear and tear of the internal motor gears, electrical faults on the control board, or low vehicle battery voltage causing the motor to overwork.
Q: Can I drive my Mercedes with a faulty ESL?
A: No. If the ESL fails in the locked position, you will not be able to steer or start the car. The vehicle will likely need to be towed for repair.
Q: What are the common fault codes for a bad ESL?
A: Common OBD-II codes include:
A25464 - Electronic Steering Lock mechanical fault.
A25407 - The electric steering lock has a mechanical fault.
A22449 - The electronic ignition lock has an internal electrical fault.
Q: How much does it cost to replace the ESL at a dealership?
A: Dealership repairs can be very expensive, often ranging from $800 to $2,000, including parts, labor, and programming. Using an aftermarket motor or emulator significantly reduces this cost.
