YUYI 1318801-1 7-Pin Automotive Electrical Connector Plug
High-Quality Socket for Car Window Devices, Central Lock Systems, and ECU Multimedia Interfaces
Product Overview

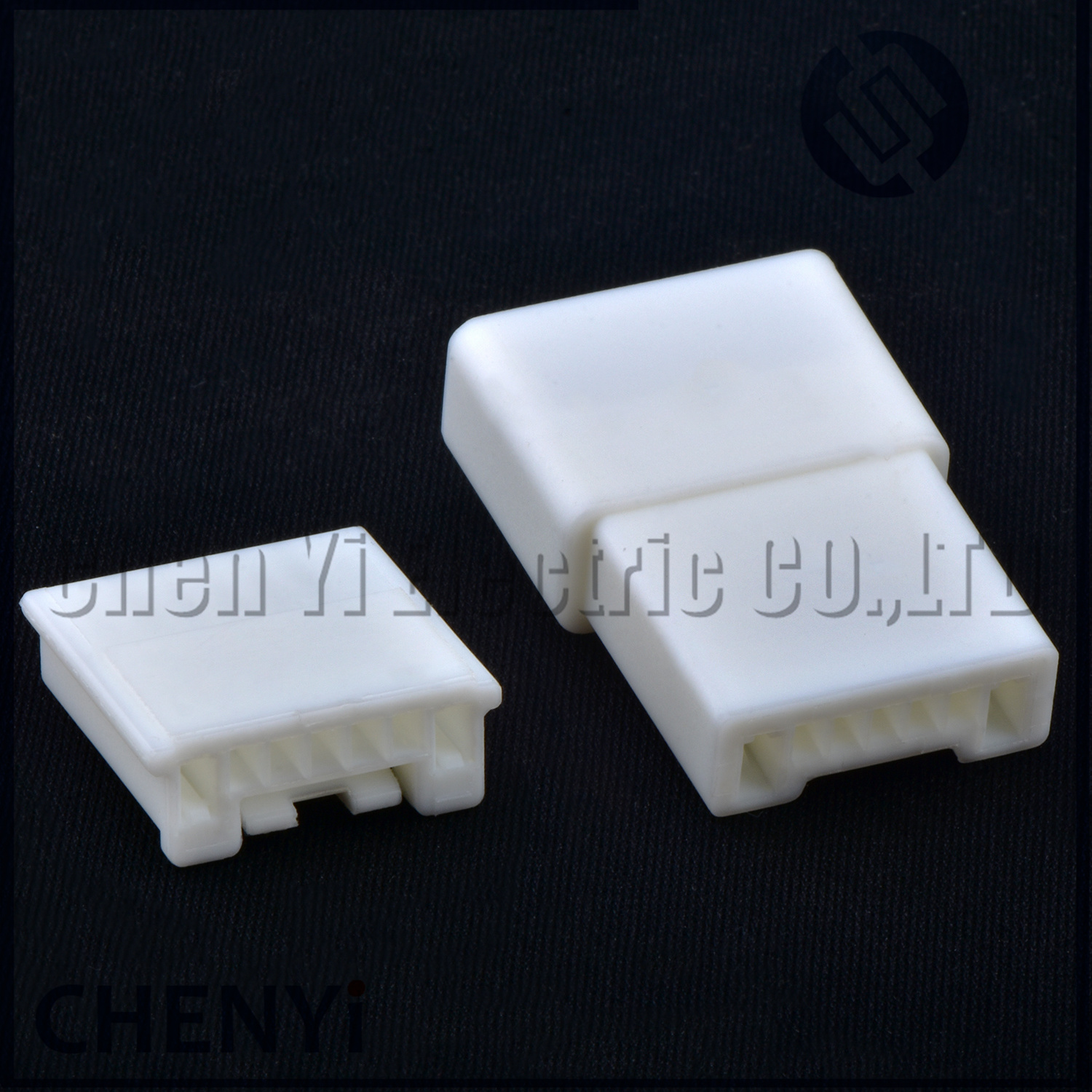

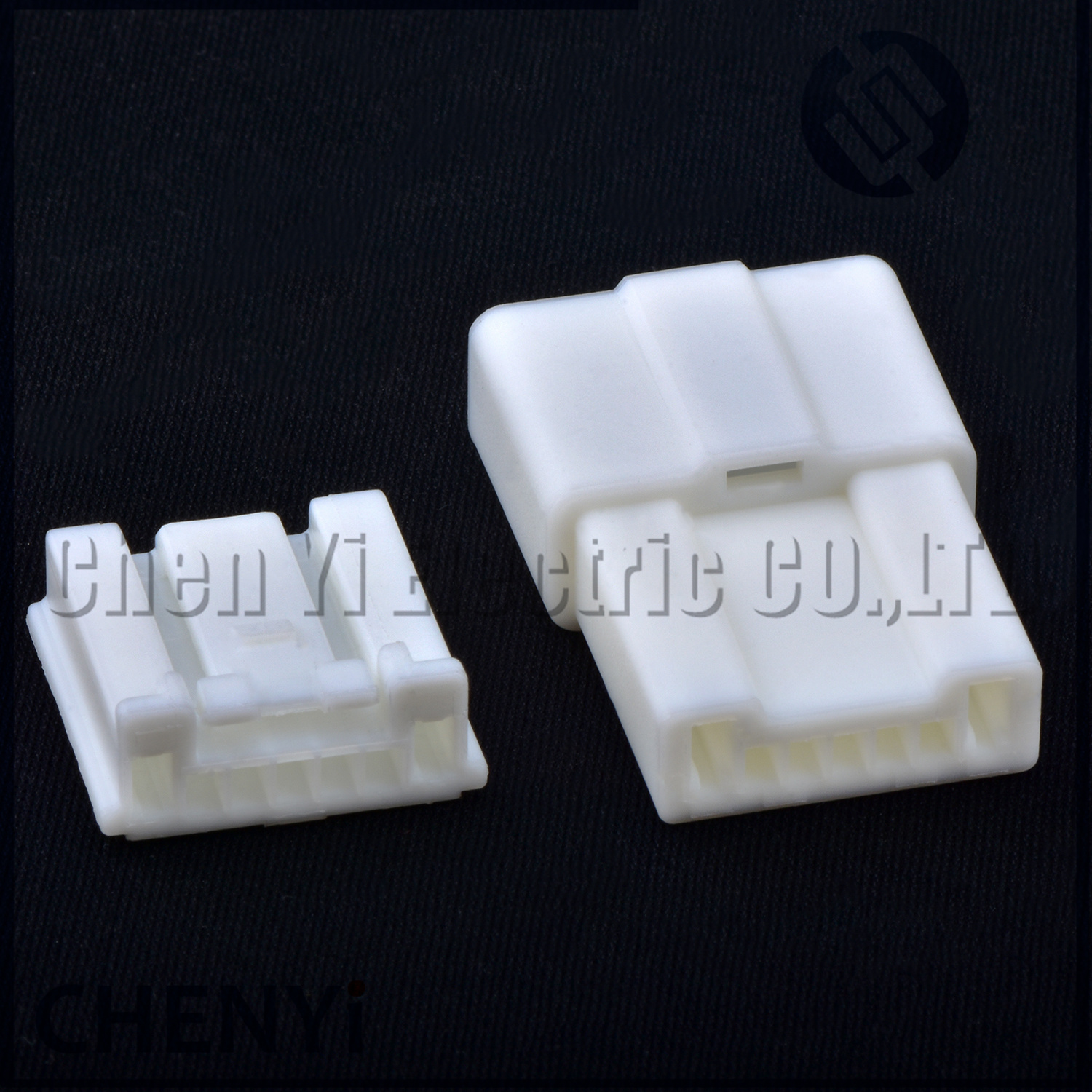

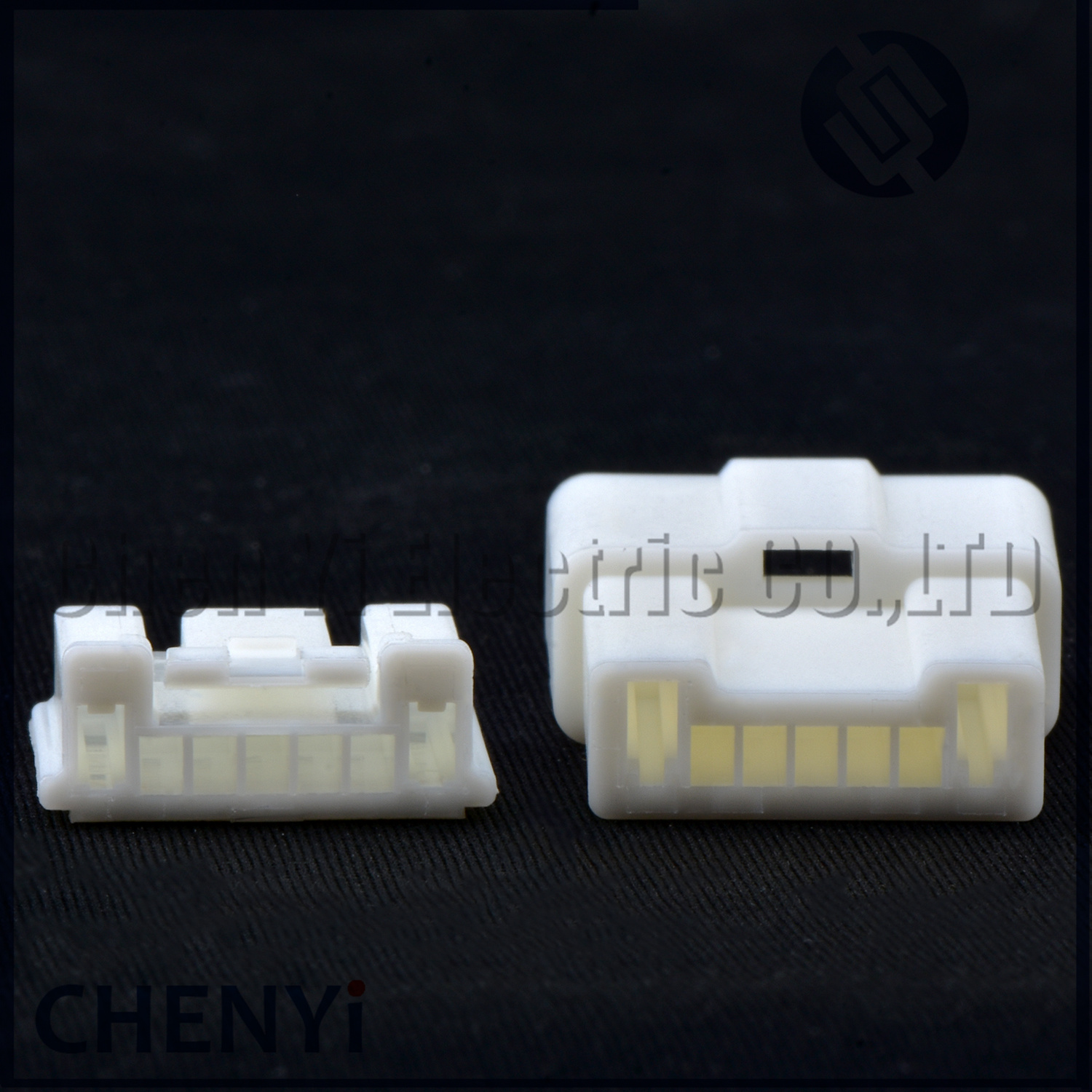

The YUYI model 1318801-1 is a professional-grade 7-pin automotive electrical connector designed for reliable wire-to-board connections in modern vehicles. This plug is commonly used in critical automotive systems such as central door locking mechanisms, electronic control units (ECUs), multimedia interfaces, and power window regulators. Manufactured by Yueqing Chenyi Electric Co., Ltd., this connector ensures stable signal transmission and power delivery with its robust nylon housing and tin-plated copper contacts.
Key Technical Specifications
| Attribute | Specification |
|---|---|
| Model Number | 1318801-1 |
| Brand Name | YUYI |
| Number of Positions | 7 Pin |
| Rated Current | 3A |
| Rated Voltage | 60V |
| Contact Material | Tin-Plated Copper |
| Housing Material | Nylon (White) |
| Gender | Male/Female (Plug) |
| Series Type | 0.6/2.0 mm Series Plug |
| Place of Origin | Zhejiang, China |
Primary Applications in Automotive Systems
This versatile 7-pin connector serves as a critical interface in various automotive electrical subsystems. Its design ensures compatibility and durability in demanding environments.
- Central Locking Systems: Connects the control unit to door lock actuators, enabling remote keyless entry and power locking functions.
- Multimedia & Infotainment: Used in head units, display screens, and audio systems for data and power transfer.
- Electronic Control Unit (ECU): Facilitates communication between the vehicle's main computer and various sensors or actuators.
- Power Window Devices: Links the window switch to the motor regulator for automatic window control.
- General Automotive Wiring: Ideal for any application requiring a secure, multi-pin connection within the vehicle's electrical harness.
Supplier & Purchasing Information
Supplier: Yueqing Chenyi Electric Co., Ltd. (Manufacturer & Trading Company)
Store Rating: 4.8/5 based on 204 reviews
Minimum Order Quantity (MOQ): 1 piece
Price Range: Approximately $0.83 - $1.66 per piece (varies with quantity)
Packaging: Single item, packaged securely in a 4x4x2 cm box.
Lead Time: Typically 20 days for orders up to 100 pieces; negotiable for larger quantities.
Installation & Usage Guidelines
Proper installation is crucial for the performance and longevity of the connector. While specific steps vary by vehicle model, general guidelines include:
- Vehicle Compatibility Check: Ensure the 1318801-1 connector matches the pinout and specifications of your vehicle's existing harness.
- Wire Preparation: Strip the wire insulation to the appropriate length for crimping.
- Crimping Terminals: Use the correct crimping tool to attach female or male terminals to the wires, ensuring a secure mechanical and electrical connection.
- Connector Assembly: Insert the crimped terminals into the nylon housing until they click into place, ensuring proper polarization.
- Connection Test: Before final assembly, test the connection for continuity and proper function of the associated system (e.g., test the window or lock).
Product Support & After-Sales Service
Yueqing Chenyi Electric Co., Ltd. offers support for their products. Buyers can:
- Contact Supplier: Reach out directly through the 6688789 platform for technical queries or product specifications.
- Return Policy: The product is listed with an "easy return" option, though specific terms should be verified with the seller before purchase.
- Quality Assurance: The connector is manufactured to meet industry standards for automotive applications, ensuring reliability.
