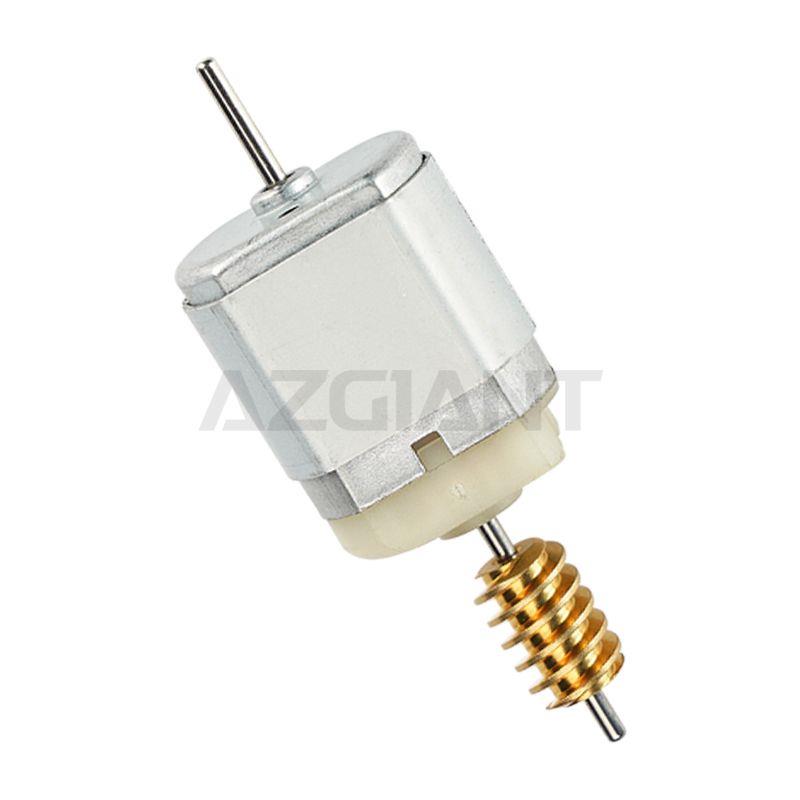

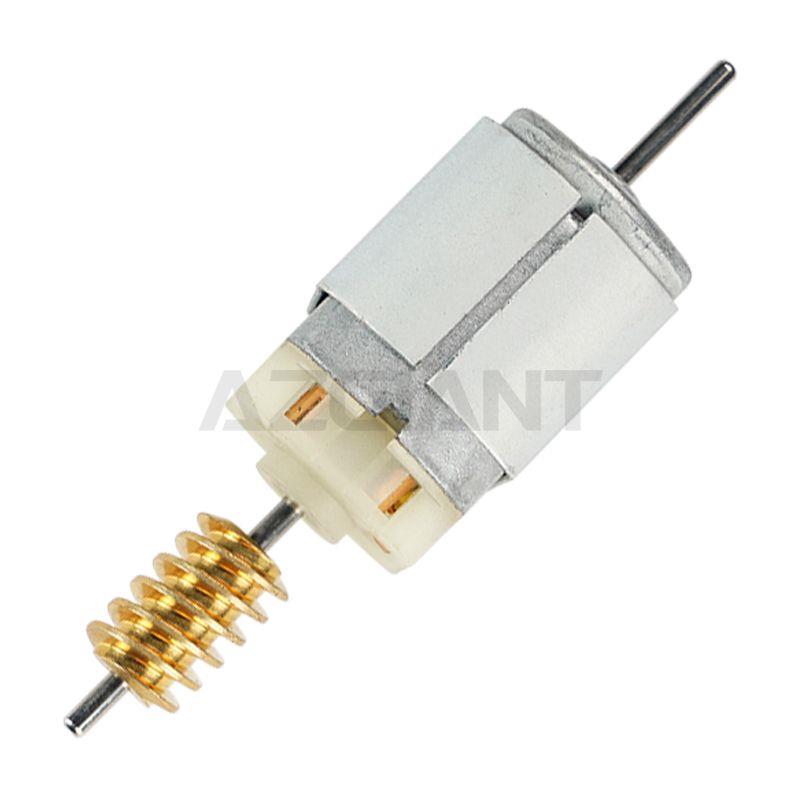

AZGIANT Car Steering Column Lock Motor (ELV/ESL Actuator) for Nissan 370Z, Altima, Maxima, GT-R
This product is a direct replacement for the faulty Electronic Steering Column Lock (ESCL) motor found in certain Nissan and Infiniti models. A common failure point in these vehicles is the wear of the internal plastic gears inside the actuator, which prevents the steering wheel from unlocking and the car from starting. This replacement motor is designed to restore functionality and is compatible with several popular models.
Product Specifications & Compatibility
| Attribute | Details |
|---|---|
| Brand | AZGIANT |
| Condition | New |
| Type | ELV/ESL Motor (Steering Column Lock Actuator) |
| OEM Part Number Reference | 48700-9N00A, 48700-9N00B, 48700-1NC0A |
| Warranty | 1 Year |
| Place of Origin | Guangdong, China |
Compatible Vehicle Models
- Nissan 370Z: 2009, 2010, 2011, 2012
- Nissan GT-R: 2009, 2010, 2011
- Nissan Altima: 2007, 2008, 2009, 2010, 2011, 2012, 2013
- Nissan Maxima: 2009, 2010
- Nissan Murano: Compatible models (check specific year)
Usage & Installation Guide
Replacing the steering column lock actuator is considered a medium-difficulty DIY task. It requires some automotive knowledge and specific tools.
Tools Required:
- Standard screwdriver set
- Panel popping tool (for dashboard trim)
- Dremel tool or grinder (for removing breakaway bolts)
- Safety glasses
- Special Programming Tool: Required to complete the installation procedure.
General Installation Steps:
- Disconnect the Battery: Always start by disconnecting the negative battery terminal for safety.
- Remove Dashboard Panels: Remove the side dash panel and the lower dash panel under the steering column to access the actuator.
- Disconnect Wiring: Unplug all wire connectors for the OBD-II port, key ports, and fuse box as needed.
- Access the Actuator: Remove the bracket screws under the steering column to gain access to the cylinder lock actuator.
- Remove Breakaway Bolts: These are one-time-use bolts. Use a Dremel to grind a slot into the bolt heads and carefully remove them with a stubby flathead screwdriver.
- Replace the Unit: Disconnect the old actuator and install the new one.
- Reassembly: Reinstall in reverse order, ensuring all connections are secure.
- System Matching: After installation, turn off the vehicle and let it sit for 5-10 minutes for the system to automatically match.
- Test Functionality: Test the remote control and ensure the vehicle starts normally.
Purchase & After-Sales Information
Supplier:
Shenzhen AZGIANT Processing and Manufacturing Co., Ltd. is a supplier specializing in automotive parts and accessories.
Ordering Information:
- Minimum Order Quantity (MOQ): Typically 1 piece.
- Shipping: Available worldwide, with processing times of 1-3 business days.
After-Sales Policy:
- Returns: Usually accepted within 30 days of receipt. Buyer may be responsible for return shipping costs.
- Warranty: This product comes with a 1-year warranty against manufacturing defects.
- Support: Contact the seller through the platform's messaging system for issues related to compatibility or installation.
Extended Information & Common Search Terms
Common Problem Background:
Many Nissan vehicles from the 2007-2013 era are known for a common failure where the car won't start, and the steering wheel remains locked. This is often accompanied by flashing key or anti-theft lights. The root cause is typically the failure of the Electronic Steering Column Lock (ESCL) unit, specifically the wear and tear of the plastic internal gears of the actuator motor. This part is critical to the vehicle's anti-theft system, and if it fails, the car's ECU will not allow the engine to start.
Alternative Solutions:
- OEM Replacement: Purchasing a new steering lock assembly from a Nissan dealership. This is often the most expensive option.
- Aftermarket Actuator (This Product): A cost-effective solution that replaces only the failed motor component.
- Steering Lock Bypass Harness: Some aftermarket companies sell a harness that bypasses the lock mechanism entirely, eliminating the possibility of future failure. This is a popular modification.
- Pulling the Fuse: In some cases, pulling the fuse for the steering lock module can temporarily resolve the issue, but this may disable the locking function.
