HBAN HBS1-AGQ16F-EC: 16mm Metal Waterproof Push Button Switch with Ring LED
Brand: HBAN | Model: HBS1-AGQ16F-EC(Z)/J/S/B | Type: Illuminated Mechanical Switch
Product Overview

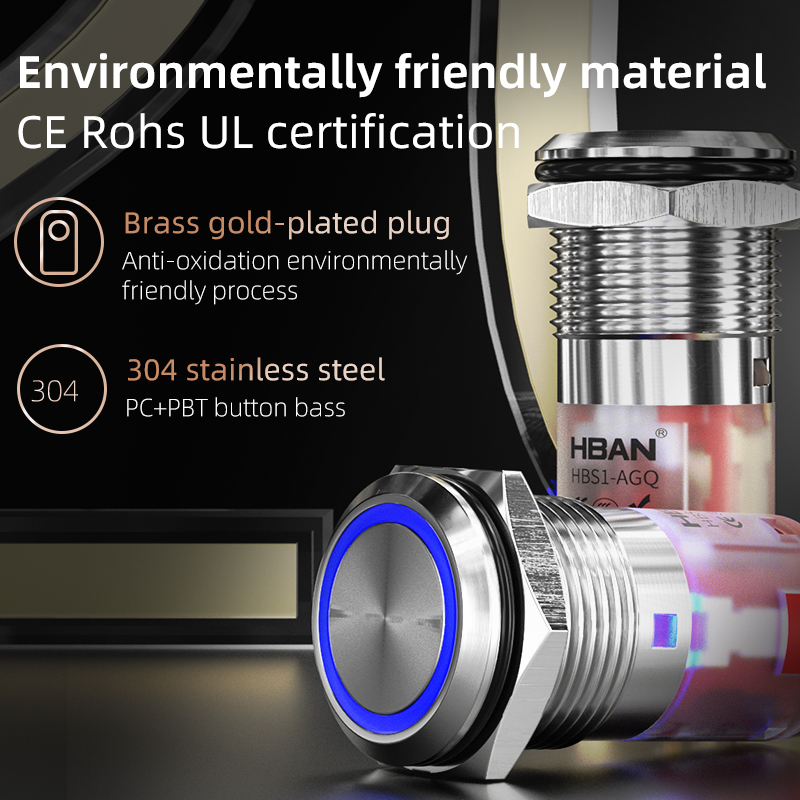

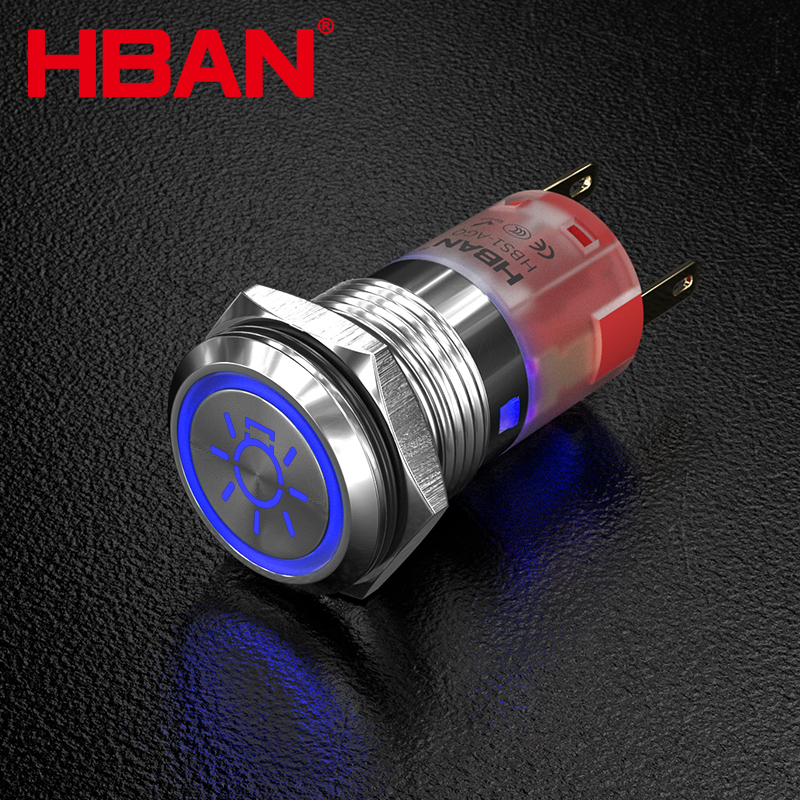

The HBS1-AGQ16F-EC from HBAN is a high-quality, stainless steel push button switch designed for demanding environments. Featuring an IP67 waterproof rating and a distinctive ring LED illumination with a light bulb symbol, this switch combines durability with clear visual feedback. It is widely used in industrial control panels, automotive applications, medical equipment, and smart home systems.
Technical Specifications
| Attribute | Specification |
|---|---|
| Max. Current | 5A |
| Max. Voltage | 250V |
| Switch Combination | 1NO1NC (SPDT) |
| Mechanical Life | 1,000,000 times |
| Mounting Hole Size | 16mm |
| IP Rating | IP67 (Dust and Waterproof) |
| Material | Stainless Steel Shell |
| Terminal Type | Pin Terminal (Mating connector available) |
| Operation Type | Momentary or Latching (Selectable) |
| LED Color | Blue |
| LED Voltage | 12V, 24V, 220V (Options) |
| Place of Origin | Zhejiang, China |
Usage and Installation Guide

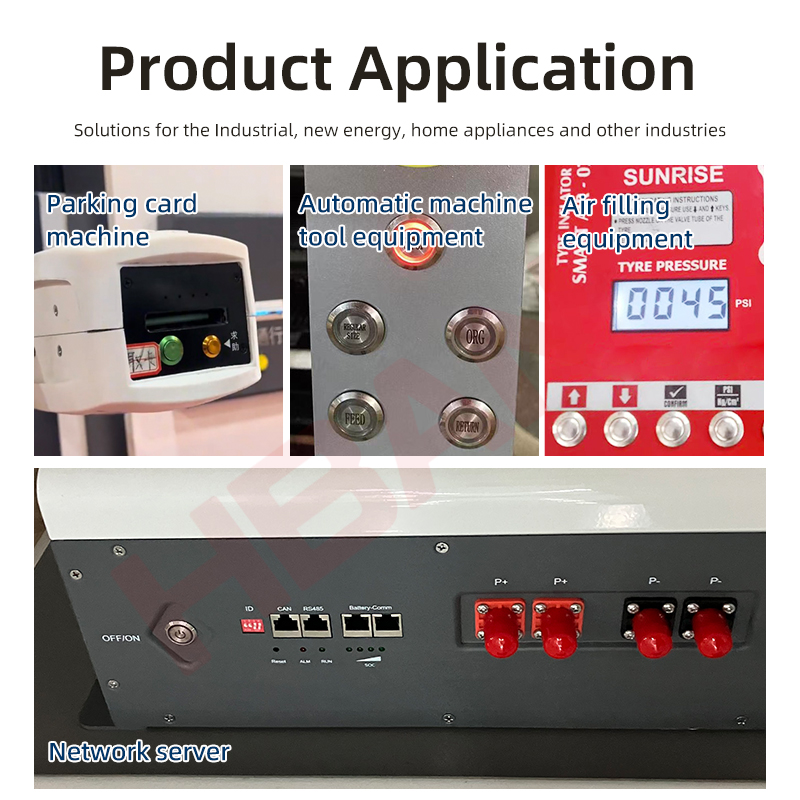

Applications
- Industrial Control: CNC machines, control panels, automation equipment.
- Automotive & Marine: Start/stop systems, dashboard controls, boat electronics.
- Consumer Electronics: Smart home appliances, digital product interfaces.
- Medical Equipment: Devices requiring reliable, sealed controls.
- Renewable Energy: Inverters, charge controllers.
Wiring Instructions
This switch has a 1NO1NC (SPDT) configuration. Typical wiring involves:
- Common (COM): Connect to the power source or load.
- Normally Open (NO): Circuit closes when the button is pressed.
- Normally Closed (NC): Circuit opens when the button is pressed.
- LED Terminals: Connect to the specified DC voltage (e.g., 12V/24V) with correct polarity.
Note: Always de-energize the circuit before installation and ensure proper sealing for IP67 performance.
Purchasing Information
This product is available through manufacturers and distributors on platforms like ajfpt.com.
- Supplier: Yueqing Dahe Electric Co., Ltd. (Custom Manufacturer with 13+ years of experience).
- Minimum Order Quantity (MOQ): Typically 10 pieces.
- Price Range: Approximately $3.10 - $3.42 per unit (prices may vary based on quantity and LED voltage).
- Packaging: Single item, packaged in a 21x13x6 cm box.
Order Protection & Logistics
When purchasing via 6688789, buyers can benefit from:
- Trade Assurance: Protects your payment if shipment is late or product quality is unsatisfactory.
- Shipping Options: Express (DHL, FedEx) for small packages, or air/sea freight for bulk orders.
- Customization: Suppliers often offer custom symbols, colors, and wiring configurations.
