Beiben 8x4 12m³ Concrete Mixer Truck: High-Efficiency Construction Machinery
Brand: Beiben (North Benz) | Drive Type: 8x4 | Core Model: 3138BZ / V3 Series
Product Overview

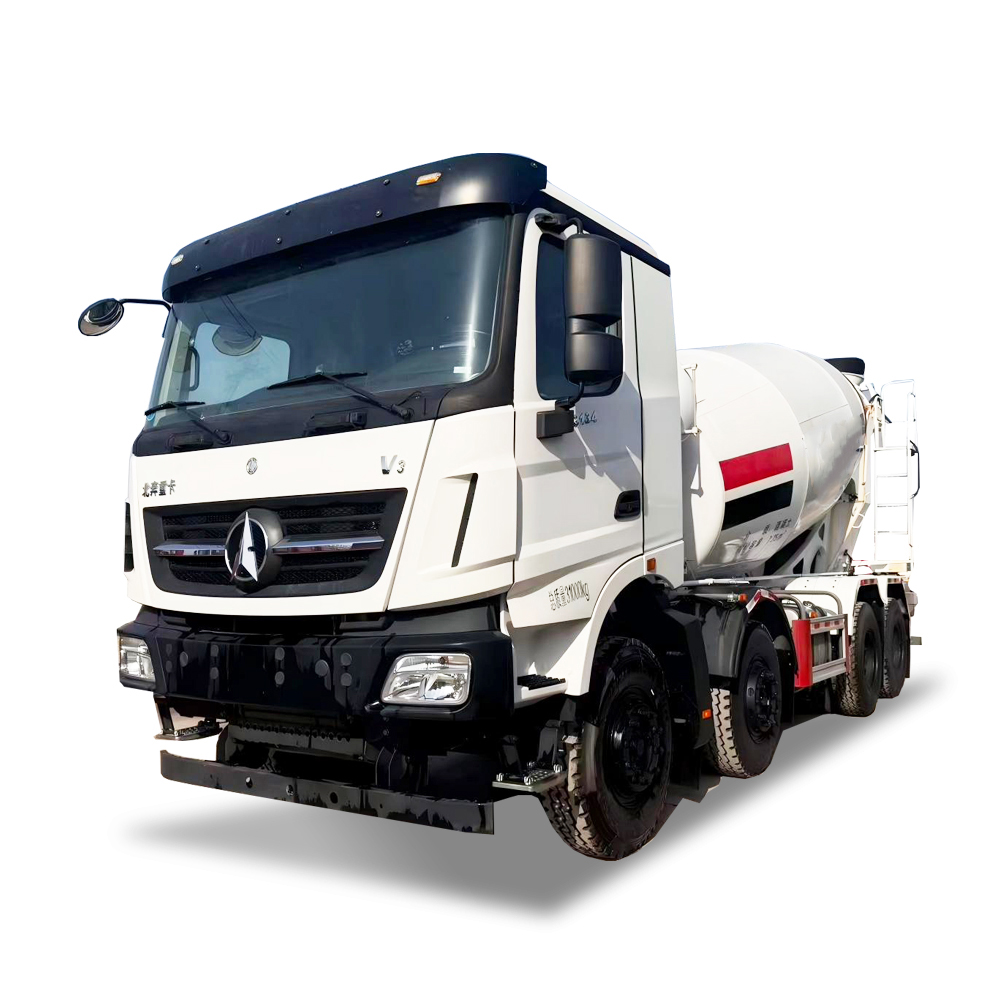

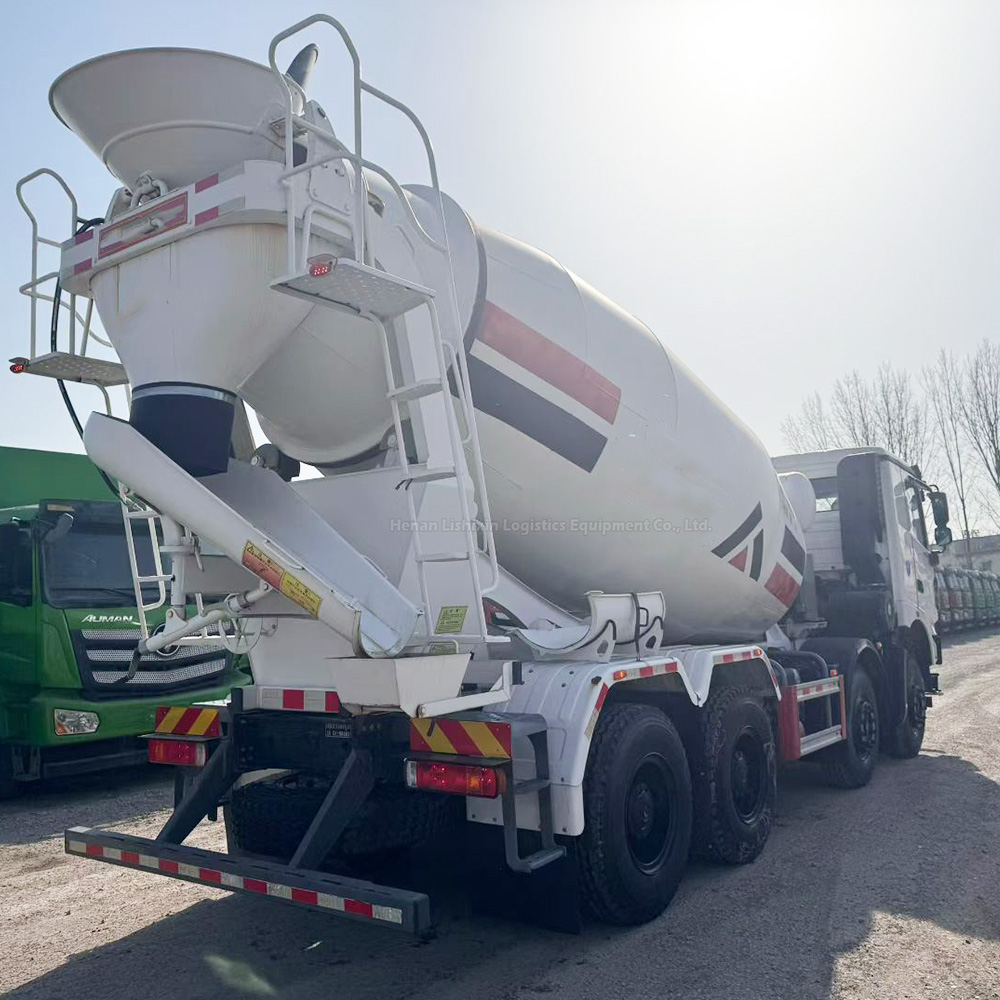

The Beiben 8x4 Concrete Mixer Truck is a heavy-duty vehicle engineered for the rigorous demands of modern construction sites. Known for its robust chassis derived from Mercedes-Benz technology and its high-torque power system, this truck ensures reliable transportation and mixing of concrete. With a standard mixing drum capacity of up to 12 cubic meters and a powerful engine range, it is designed to maximize payload and operational efficiency while adhering to strict emission standards.
Technical Specifications
| Category | Specification |
|---|---|
| Brand & Model | Beiben (North Benz) 8x4 3138BZ / V3 Series |
| Engine Model | Weichai WP8.340E51 / WP10.380E32 (Euro III / Euro V options) |
| Rated Horsepower | 340 HP - 380 HP |
| Transmission | FAST (Fashite) 9-speed or 12-speed Manual Gearbox |
| Drive Type | 8x4 (Four axles, eight wheels, dual rear axles driven) |
| Mixing Drum Capacity | 7.6 m³ - 12 m³ (Standard), up to 16 m³ (Customized) |
| Drum Rotation Speed | 0-14 rpm (adjustable for mixing and discharging) |
| Wheelbase | 1950+2900+1350 mm (Typical for stable transport) |
| Tire Specification | 11.00R20 or 12.00R20 (Heavy-duty reinforced) |
| Fuel Tank Capacity | 300 L (Aluminum alloy for long-distance operation) |
| Water Tank Capacity | 300 L (Pressurized water supply system) |
| Overall Dimension (LxWxH) | Approx. 11285x2500x3990 mm |
Usage & Operation Guide
Daily Operation
- Pre-Start Check: Inspect tire pressure, engine oil, hydraulic fluid, and ensure the drum rotates freely before ignition.
- Loading Concrete: Maintain a steady feed rate (≥2.8 m³/min) to prevent segregation of the mixture.
- During Transport: Keep the drum rotating at a low speed (2-6 rpm) to prevent concrete from setting and maintain consistency.
- Discharging: Increase drum rotation speed to ≥1.2 m³/min for efficient pouring. Use the attached chute for precise placement.
Maintenance Tips
- Daily Cleaning: Thoroughly rinse the drum, feed hopper, and discharge chute with high-pressure water after each use to prevent concrete buildup.
- Hydraulic System: Check hydraulic oil levels every 50-100 operating hours. Replace oil and filters every 2000 hours or annually.
- Greasing: Regularly lubricate the drum's rotating bearings, pivot points, and pump connections with high-temperature grease.
- Engine Care: Follow the manufacturer's schedule for oil and filter changes, especially in dusty construction environments.
Purchasing Guide
Key Considerations
- Project Scale: Choose a drum capacity (8m³, 10m³, 12m³) based on your daily concrete output requirements.
- Emission Standards: Ensure the truck (Euro III, IV, V, or China National VI) complies with local environmental regulations.
- Terrain Adaptability: The 8x4 drive offers excellent traction, making it suitable for rough and muddy construction sites.
- Supplier Reputation: Verify the supplier's after-sales service network and availability of spare parts.
Price Factors
The price of a Beiben 8x4 mixer truck (typically ranging from $30,000 to $60,000) is influenced by:
- Engine horsepower and emission standard (higher standards increase cost).
- Mixing drum size and material (wear-resistant steel liners add value).
- Optional features (e.g., automated pump system, GPS tracking, upgraded cabin).
- Market demand and raw material costs (steel prices directly impact the final price).
Performance & After-Sales Support
Industry Reputation
Beiben trucks are renowned for their durability and reliability, often praised for their robust chassis design and low failure rate. Users report that the combination of Weichai engines and FAST gearboxes provides a perfect balance of power and fuel economy.
After-Sales Service & Warranty
- Warranty Period: Standard warranty is 1 year or 50,000 km (whichever comes first), with options for extension.
- Reliability Promise: Beiben offers commitments such as "800,000 km without major overhaul" on key components.
- Global Support: A network of service centers and parts depots ensures technical support and maintenance globally.
- Online Support: 24/7 online technical assistance and access to digital maintenance manuals.
