Semi Trailer Kingpin, Kingpin Press Tool Hardware - Complete Guide

Key Specifications & Attributes

Standard Sizes

Two primary diameters exist: 2 inches (50mm) and 3.5 inches (90mm). The length must be sufficient to securely pass through the fifth wheel.

Material & Strength

Typically manufactured from high-strength alloy steel such as 40CR or 20CrMnTi. This provides superior tensile strength, durability, and resistance to wear and impact. The material hardness often reaches 32-36 HRC.

Installation Types

• Welded Kingpins: Permanently welded to the trailer's skid plate. Replacement requires cutting and re-welding.

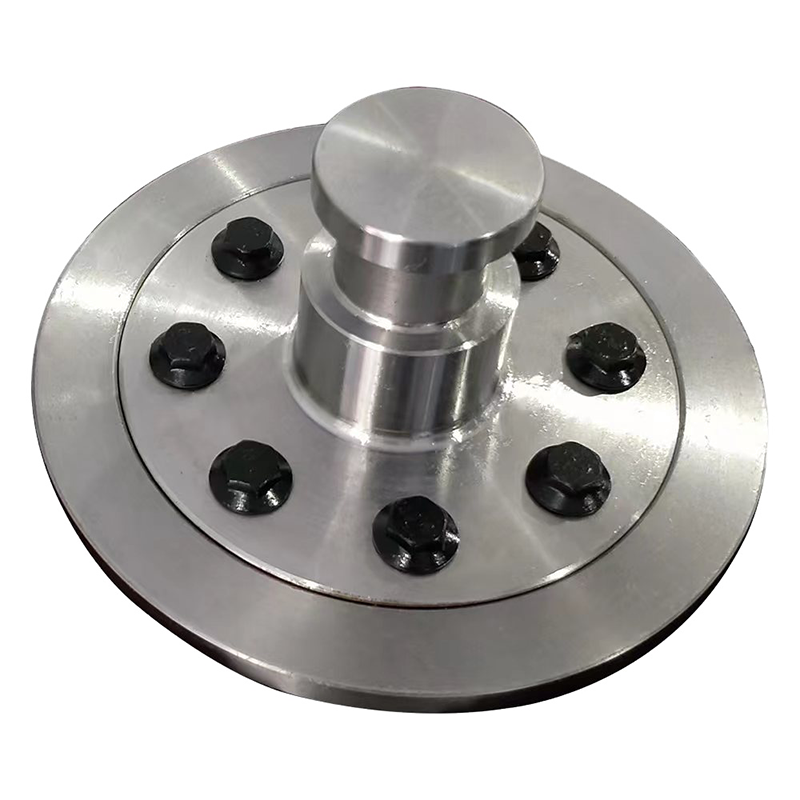

• Bolted Kingpins: Feature a retention plate welded to the skid plate, with the kingpin bolted on. This allows for easier replacement and maintenance.

Load Capacity (D-Value)

Engineered to handle extreme forces, with load capacities typically ranging from 20,000 to over 40,000 pounds. The exact capacity depends on the kingpin type and the thickness of the skid plate to which it is attached.

Maintenance & Inspection

Regular maintenance is critical for safety. The Society of Automotive Engineers (SAE) recommends inspection every three months or 30,000 miles.

1. Visual Inspection: Check for cracks, rust, or visible damage before and after trips.
2. Lubrication: Apply high-quality grease regularly to reduce friction and wear on the kingpin and fifth wheel lock jaws.
3. Wear Measurement: Kingpins showing 1/8 inch (0.125") of diameter wear should be replaced immediately to prevent coupling failure.
4. Straightness Check: A kingpin bent more than 1 degree from square is unsafe and must be replaced.

Types of Kingpin Presses

• Hydraulic Kingpin Press: Uses hydraulic pressure to generate immense force (e.g., 65 to 100 tons). This is the most common type for professional workshops. Brands like Tiger Tool and OTC are well-known in this category.
• Airbag Kingpin Press: Utilizes compressed airbags to exert force. Generally considered easier to use but may be less powerful than hydraulic models.
• Portable vs. Stationary: Portable models are smaller and lighter for on-the-go repairs, while stationary workshop presses offer greater power and stability.

How to Operate a Hydraulic Kingpin Press

1. Safety First: Ensure the vehicle is securely supported on a solid surface. Wear appropriate personal protective equipment (PPE).
2. Position the Press: Align the press frame with the axle and suspension components. Use the correct pins and adapters to center the force on the kingpin.
3. Activate the Hydraulic Cylinder: Pump the hydraulic hand pump or activate the power unit to apply gradual, controlled pressure.
4. Monitor the Process: Apply force evenly until the kingpin is pushed out of its housing. For severely seized pins, tapping the top of the press with a hammer can help "persuade" it.
5. Installation: To install a new kingpin, reverse the process, ensuring it is seated squarely. For bolted kingpins, tighten bolts to the manufacturer's specified torque (e.g., 180-200 ft-lbs) and secure with lock wire.

Anti-Theft Kingpin Locks

Trailer theft is a significant concern. Kingpin locks are a primary deterrent.

• Design: Constructed from hardened cast steel or ductile iron, these locks fit over the kingpin to prevent it from being coupled to a fifth wheel.
• Features: High-security locks feature anti-pick, anti-drill, and anti-leverage designs. Brands like AMPLock and Buyers Products offer robust models.
• Installation: Quick and easy; simply place the lock over the kingpin and secure it with a key.

Other Critical Hardware

• Kingpin Bushings: Brass or bronze sleeves that act as a bearing surface, allowing the kingpin to pivot smoothly. These wear out over time and must be replaced during maintenance.
• Kingpin Extensions: Used to move the kingpin's connection point further from the truck cab, improving clearance for short-bed trucks during sharp turns.
• Fifth Wheel Couplings: The counterpart to the kingpin, mounted on the tractor. Proper alignment and maintenance of the fifth wheel are equally important for a secure connection.

Choosing the Right Kingpin

When selecting a kingpin, consider the following:

• Compatibility: Match the size (2" or 3.5") and type (welded or bolted) to your trailer's specifications.
• Brand & Quality: Reputable brands like JOST, SAF-HOLLAND, and Wondee are known for quality and adherence to international standards (ISO, DIN).
• Material Certification: Ensure the kingpin meets or exceeds industry standards for material strength and durability.

Selecting a Kingpin Press Tool

• Tonnage: Choose a press with sufficient force (e.g., 80-100 tons) for heavy-duty applications.
• Portability: Fleet maintenance services may require portable models, while dedicated shops can opt for larger stationary units.
• Brand Reputation: Tiger Tool (Model 90150) and OTC (Model 4240) are highly regarded by professional technicians.

Replacement Cost & Labor

The cost to replace a kingpin varies based on labor and the extent of damage to the upper coupler plate.

• Labor Time: A simple bolt-on kingpin replacement can take about 2 hours. If the upper coupler plate is damaged, labor can extend to 8 hours or more.
• Total Cost: Industry sources suggest a typical cost, including parts and alignment, can be around $1,200 or more, depending on the shop and vehicle.
