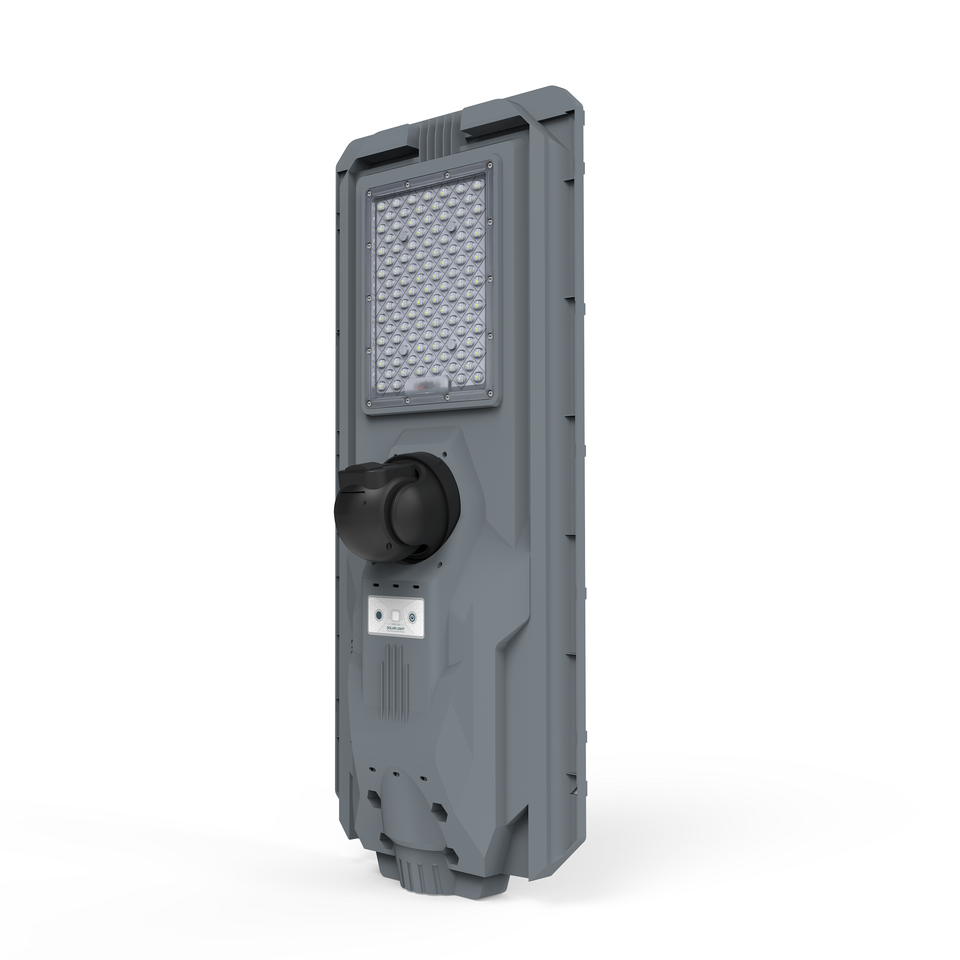

Juneng 100W-300W LED 4G Smart Solar Street Light
Remote Monitoring, Motion Sensor, IP65 for Outdoor Road, Garden, Office
Product Overview
This 4G smart solar street light from Juneng New Energy Co., Ltd. represents a cutting-edge integration of solar technology, LED illumination, and IoT connectivity. Designed for outdoor applications, it offers a sustainable and intelligent lighting solution that can be remotely monitored and controlled via 4G networks. Key features include human motion sensing, adjustable power settings (100W-300W), and a robust IP65-rated housing suitable for various weather conditions.
Technical Specifications
| Attribute | Specification |
|---|---|
| Brand | Juneng |
| Model | Integrated 4G Smart Solar Street Light |
| Power Range | 100W, 200W, 300W (Customizable) |
| Light Source | High-Efficiency LED (5050 beads) |
| Luminous Flux | Up to 3600lm (Model Dependent) |
| Luminous Efficiency | >160 lm/W |
| Color Temperature (CCT) | 6500K (Daylight White) |
| Input Voltage | DC 4V / 12V / 24V (System Dependent) |
| Battery Type | Lithium Iron Phosphate (LiFePO4), 12.8V System |
| Battery Capacity | Customizable (e.g., 54Ah, 165Ah) |
| Solar Panel | A-Grade Monocrystalline Silicon (110W-160W) |
| Controller | MPPT Smart Controller with 4G Module |
| IP Rating | IP65 (Dustproof and Waterproof) |
| Working Temperature | -20℃ to 60℃ |
| Applications | Roads, Gardens, Warehouses, Hotels, Offices, Parking Lots |
Usage and Installation Guide
Working Principle
During the day, the solar panel converts sunlight into electricity, which is stored in the LiFePO4 battery via the MPPT controller. At night, the controller automatically powers the LED lamp. The 4G module enables remote control and real-time monitoring of the light's status, including battery level, charging status, and power consumption.
Installation Steps
- Foundation Construction: Excavate a pit (e.g., 60x60x70cm for a 6m pole), place the pre-embedded parts (M24 bolts), and pour C20 concrete. Allow 3-4 days for curing.
- Pole and Component Assembly: Erect the lamp pole, ensuring it is vertical using a level. Fix the solar panel bracket and adjust the tilt angle to match the local latitude for optimal sunlight exposure.
- Electrical Connection: Connect the solar panel, battery, and LED light to the controller according to the color-coded wires (red for positive, black for negative). Ensure all connections are secure and waterproofed.
- System Activation: After installation, the system will start working automatically. Use the dedicated mobile app or remote control to configure settings such as lighting modes and motion sensor sensitivity.
Smart Features
- 4G Remote Monitoring: Control and monitor the lights remotely via a smartphone app or PC platform from anywhere with cellular coverage.
- Motion Sensor: Automatically increases brightness when human movement is detected, enhancing security and saving energy.
- Multi-Lighting Modes: Supports dusk-to-dawn, timing control, and dimming functions.
Buying Guide
How to Choose the Right Model
- For Pathways and Gardens (Low Traffic Areas): 100W model is sufficient.
- For Parking Lots and Warehouse Perimeters (Medium Traffic Areas): 200W model is recommended.
- For Main Roads and High-Security Areas (High Traffic Areas): 300W model provides the best illumination.
Price Range
The price varies based on power and battery capacity. Wholesale prices are tiered:
1-40 pieces: Approximately $30-35 per unit (100W model)
40-99 pieces: Approximately $28-32 per unit
>100 pieces: Approximately $25-30 per unit
Supplier Information
Supplier: Qiqihar Juneng New Energy Co., Ltd.
Business Type: Trading Company
Location: China
Response Time: Within 1 hour
Reviews and Testing Insights
Common Feedback from Users
- Pros: Easy installation (no wiring), significant energy savings, reliable performance in off-grid areas, the 4G remote control is stable and convenient.
- Cons: Initial investment is higher than traditional lights; performance is dependent on sunlight availability.
Performance Testing
Independent tests on similar products show that a well-configured solar street light can provide illumination throughout the night after a full day of charging. The light output may gradually decrease after 4-6 hours to conserve battery, ensuring functionality during consecutive cloudy days.
After-Sales Support and Warranty
Warranty Policy
The product typically comes with a 3-year warranty covering the LED light source, controller, and battery. The solar panel often has a longer warranty period of up to 10-25 years.
Common Issues and Troubleshooting
- Light Not Turning On: Check battery voltage (should be above 10.8V for a 12V system). Inspect controller for water damage or loose connections. Ensure the solar panel is not obstructed.
- Flickering Light: Usually indicates a weak battery or poor contact in the wiring. Check and tighten all connections.
- Short Backup Time: The battery may be aging (typical lifespan is 3-5 years) or the recent weather may have been cloudy, leading to insufficient charging.
Customer Service
Contact the supplier for technical support or to open a dispute on the 6688789 platform. The supplier offers production monitoring and inspection services for bulk orders.
