Brand: Bozhou (Mingbo) | Place of Origin: Zhejiang, China | Model: TG26-B, TG27-B
Product Overview

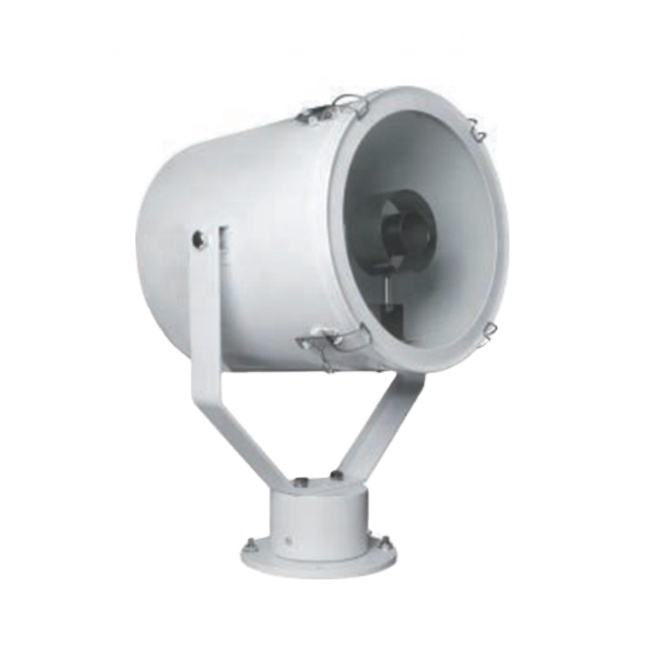

The TG26-B and TG27-B are professional-grade marine searchlights specifically engineered for long-distance illumination and search operations during nighttime navigation. These lights are constructed with durability and performance in mind, making them ideal for a variety of maritime applications, including:
Illuminating waterways and both banks.
Surface search in complex waters such as narrow channels and inland rivers.
Providing powerful lighting for navigation, rescue, and emergency signaling.
Built with a robust stainless steel body and high-quality toughened glass lens, these searchlights are designed to withstand harsh marine environments. They have obtained certification from the China Classification Society (CCS), ensuring they meet stringent quality and safety standards for seagoing vessels.
Detailed Specifications
Attribute
TG26-B Specifications
TG27-B Specifications
Model
TG26-B
TG27-B
Power
300W / 500W
1000W
Voltage
220V/50Hz, 220V/60Hz
Lamp Holder
GY9.5
Light Source
Tungsten Halogen Lamp
Body Material
High-Quality Stainless Steel
Lens Material
Toughened Glass
Base Material
Aluminum Base / Cast Copper Base
Protection Class
IP56 (Dust-proof and protected against powerful water jets)
Adjustment Range
Horizontal 350°, Vertical (Up 20°-30°, Down 50°)
Cable Diameter
Φ10mm - Φ12mm
Weight
Approximately 16.5kg - 24.5kg
Certification
CCS (China Classification Society)
Usage and Installation Guide
Installation Instructions
Location Selection: Choose a stable and unobstructed location on the vessel that provides the widest possible field of view for the searchlight.
Mounting: Securely mount the searchlight using its stainless steel bracket and aluminum/cast copper base. Ensure all fastening bolts are tightened to prevent movement during vessel operation.
Wiring: Connect the power cables according to the voltage specifications (220V/50Hz or 220V/60Hz). Ensure all connections are waterproofed and insulated to prevent short circuits.
Grounding: Properly ground the light fixture to ensure safety.
Operation Instructions
The searchlight can be operated using the attached control rod or operating box. The light beam can be easily adjusted horizontally and vertically to direct the light where needed. The parallel beam design ensures long-distance projection with concentrated light, making it effective for search and illumination purposes.
Maintenance and Care
Regularly clean the stainless steel body and glass lens with fresh water to remove salt and dirt buildup.
Periodically check the tightness of all bolts and the integrity of the power cables.
When replacing the bulb, ensure the power is disconnected and use a bulb of the same type and power rating.
Purchase Guide
When purchasing a TG26-B or TG27-B marine searchlight, consider the following factors:
Power Requirements: Choose the power rating (300W, 500W, or 1000W) based on your vessel's size and lighting needs.
Supplier Reputation: Source from reputable manufacturers or verified suppliers, such as Zhejiang Bozhou Marine Electric Technology Co., Ltd., which has extensive experience in marine lighting.
Certification: Verify that the product comes with CCS certification to ensure it meets international marine equipment standards.
Price Range: Prices vary based on power and supplier. For example, the TG27-B 1000W model is typically priced between $200 and $325.
Reviews and Feedback
Based on product descriptions and manufacturer information, the TG26-B and TG27-B searchlights are recognized for their:
High Durability: The stainless steel construction provides excellent resistance to corrosion in marine environments.
Superior Illumination: The parallel beam offers long-distance and concentrated lighting, crucial for safe navigation.
Ease of Use: The flexible adjustment range allows for precise control of the light beam.
Compliance with Standards: CCS certification assures buyers of the product's quality and reliability.
It is recommended to check with suppliers or online marketplaces for specific customer reviews and ratings before making a purchase.
After-Sales Service and Support
After-sales support for the TG26-B and TG27-B searchlights typically depends on the supplier or manufacturer. Key aspects include:
Warranty: Contact the supplier for specific warranty details. Many manufacturers offer a limited warranty on their products.
Technical Support: Reputable suppliers provide technical support for installation and troubleshooting.
Spare Parts: Inquiries about the availability of spare parts, such as replacement bulbs and lenses, should be directed to the supplier.
Contact Information: Buyers should retain the contact information of their supplier for any after-sales inquiries or support needs.
