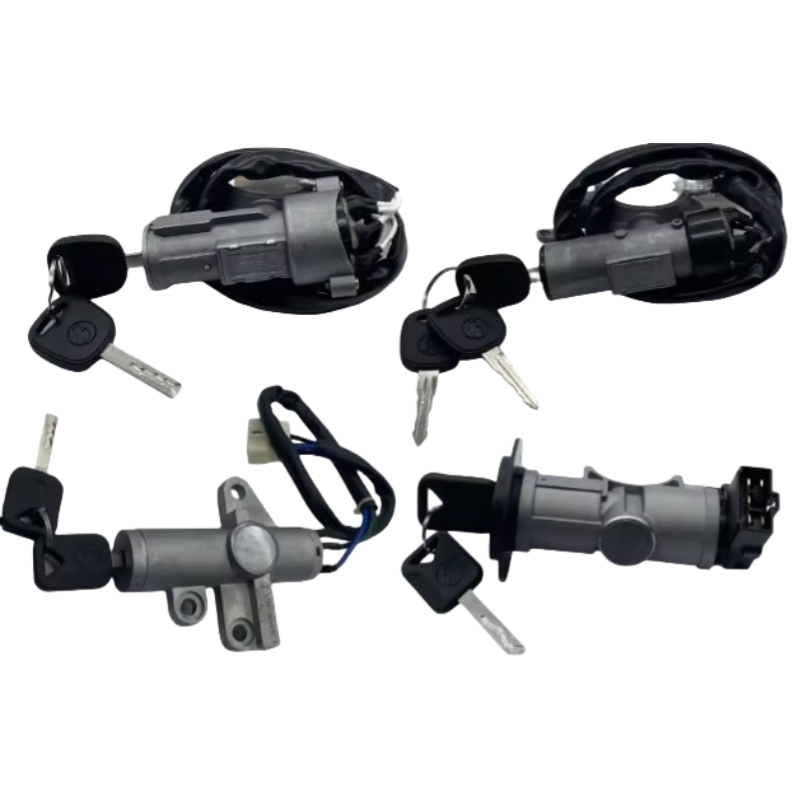

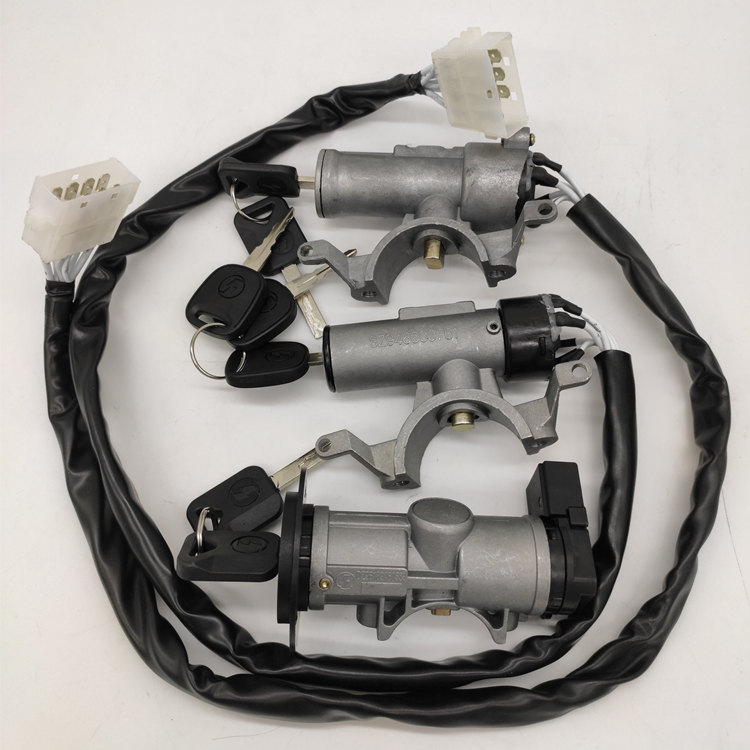

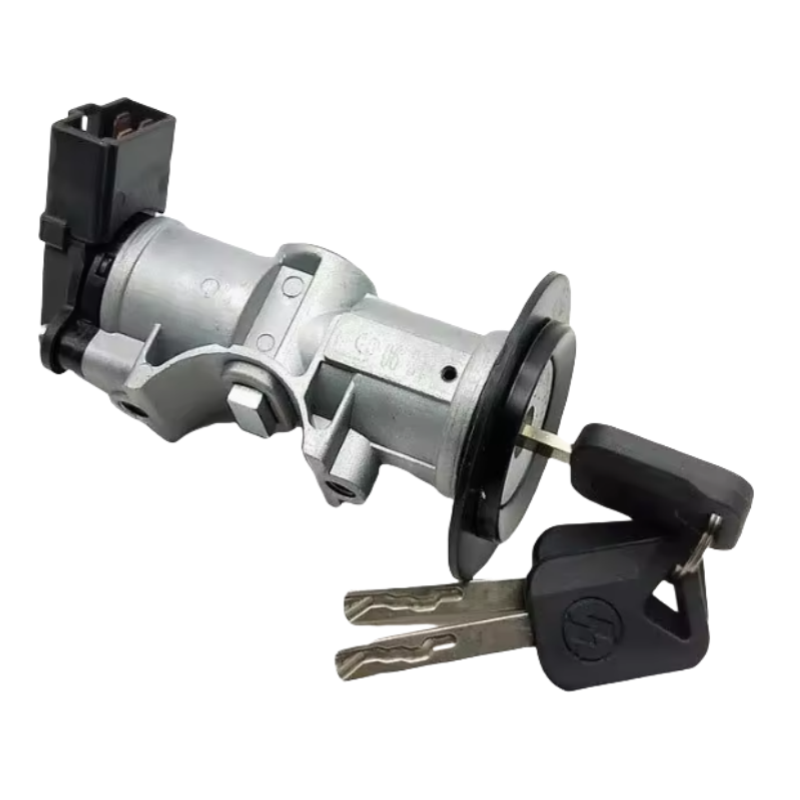

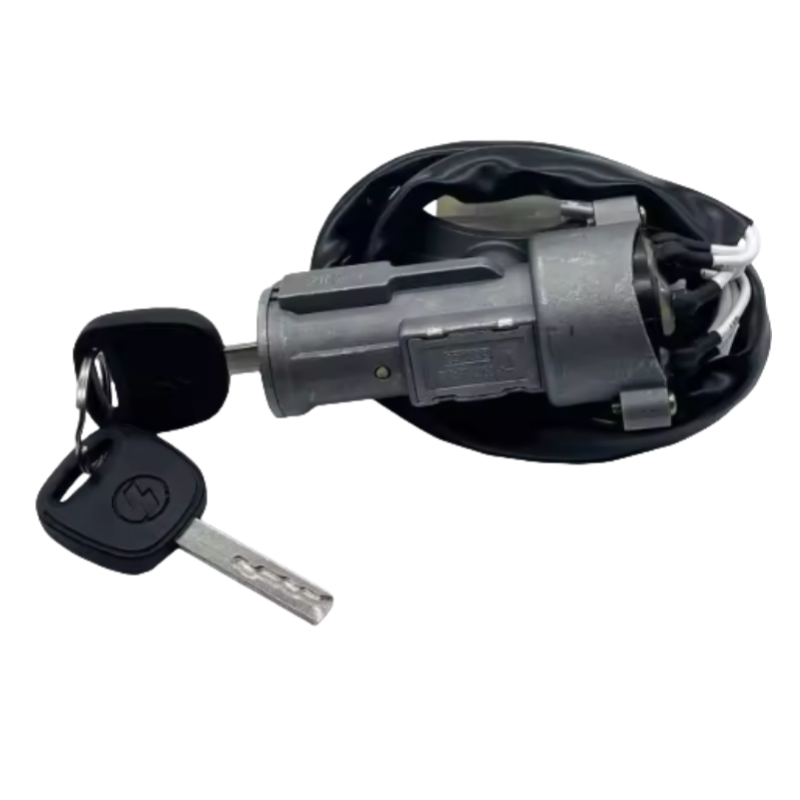

Shacman X3000 M3000 Ignition Lock and Switch DZ97189460200
High-Quality Steering Wheel Lock Assembly for Heavy Trucks
OEM Part Number: DZ97189460200
Condition: New (Original Product Quality)
Place of Origin: Shaanxi, China
Material: Iron, Copper, Brass, Plastic
Warranty: 12 Months
Product Overview
The DZ97189460200 is an integrated ignition lock cylinder and steering wheel lock assembly designed specifically for Shacman (Shaanxi Automobile) heavy-duty trucks. This critical security component controls the vehicle's electrical system activation and provides a physical lock to prevent theft. It ensures reliable engine startup and operational safety in demanding commercial environments.
Compatible Truck Models
- Shacman X3000 Series
- Shacman M3000 Series (including M3000S)
- Shacman F3000 Series
- Sinotruk HOWO (Certain Configurations)
Key Features
- Integrated Security: Combines ignition switch and steering lock into one unit.
- Mechanical Reliability: Rotary key operation with multiple positions (Off, Accessory, On, Start).
- Durability: Constructed with corrosion-resistant metals and high-strength plastics.
- Anti-Theft Protection: Locks the steering column when the key is removed.
- Direct OEM Replacement: Matches the original specifications for seamless installation.
Installation and Usage Guide
Installation Steps (Summary)
- Safety First: Disconnect the vehicle's battery to prevent accidental short circuits or airbag deployment.
- Remove Panels: Carefully remove the lower instrument panel cover and any snap-in panels around the steering column.
- Disconnect Wiring: Unplug the electrical connectors from the rear of the old ignition switch and the steering lock housing.
- Remove Old Unit: Loosen the retaining clamp bolt, press the locking pin, and carefully extract the entire assembly from the jacket tubing.
- Install New Unit: Align the new lock assembly, ensuring the locating lug fits into the recess. Secure with screws and reconnect all wiring.
- Reassemble: Reinstall the panels and reconnect the battery. Test all key positions for proper function before driving.
Note: Professional installation is recommended for those unfamiliar with steering column components.
Purchasing and Sourcing
This part is available through major B2B platforms (like 6688789), specialized heavy truck parts distributors, and authorized Shacman dealers.
Price Range
Prices vary based on supplier, quantity, and shipping terms. The typical wholesale price ranges from $8 to $18 per unit, with a Minimum Order Quantity (MOQ) often starting at 1 piece or 10 bags.
Supplier Profile
Suppliers such as Shaanxi Unicorn Truck Parts Co., Ltd. offer this product with a store rating of approximately 3.8/5. It's crucial to verify supplier credentials and product authenticity before purchasing.
After-Sales Service and Warranty
Most reputable suppliers provide a 12-month limited warranty against manufacturing defects.
Warranty Coverage
- Covers defects in materials and workmanship.
- Typically requires a copy of the invoice for claims.
- Does not cover damage caused by improper installation, accidents, or misuse.
Technical Support
Suppliers often offer online support for installation guidance and troubleshooting. For complex issues, consultation with a certified heavy truck mechanic is advised.
Troubleshooting and Maintenance
Common Issues
- Key Won't Turn: Check for steering wheel tension (try turning the wheel slightly while turning the key). May indicate a worn key or internal mechanism failure.
- No Power in "ON" Position: Check electrical connections and fuses. Could point to a faulty ignition switch component.
- Steering Wheel Won't Lock: Inspect the locking pin mechanism for damage or misalignment.
Maintenance Tips
- Regularly clean the key slot to prevent dust buildup.
- Use only the manufacturer-recommended lubricant sparingly on the key and lock cylinder.
- Avoid using excessive force when turning the key.
Related Products and Search Terms
Alternative/OEM Part Numbers
DZ97189460573, DZ96189460553, DZ96189460577, 81.46433.6009, SZ946000700
Common Search Keywords
- For Buyers: Shacman ignition switch price, M3000 steering lock replacement, DZ97189460200 supplier, heavy truck ignition assembly.
- For Mechanics: How to install Shacman ignition lock, DZ97189460200 troubleshooting, X3000 electrical switch repair.
- Industry Terms: Commercial vehicle security parts, truck cab accessories, Shacman spare parts catalog, mechanical ignition switch.
Disclaimer: This information is for reference purposes only. Always consult the vehicle's service manual and qualified professionals for installation and repair.
