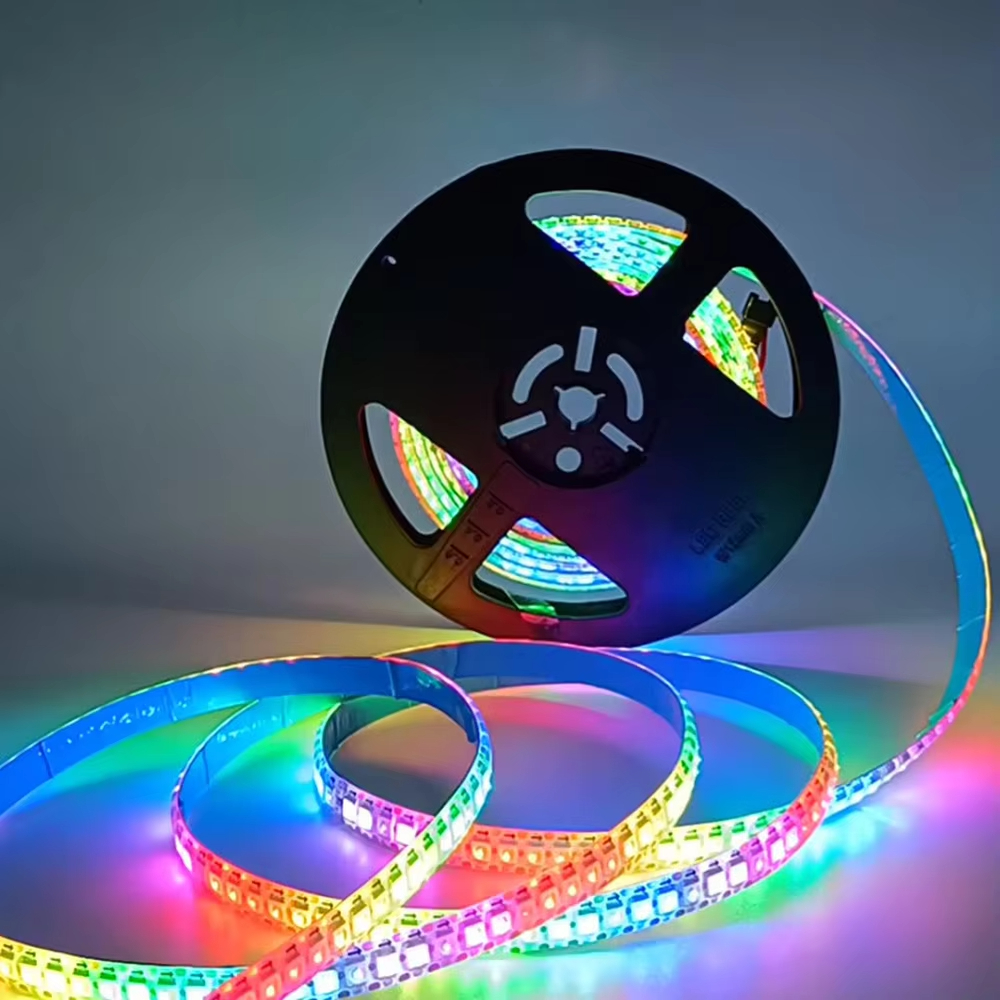

The SK6812 RGBW LED Strip Light is an advanced, addressable smart lighting solution that integrates red, green, blue, and white (RGBW) LEDs into a single 5050 SMD package. Unlike traditional RGB strips like the WS2812B, the SK6812 features an independent white channel, allowing for purer white light and a broader color gamut without the cyanish tint common in RGB-mixed whites. It is designed for both DIY enthusiasts and professional installers seeking high-quality dynamic lighting effects for home decor, commercial displays, and architectural accent lighting.
Key Advantages:
Superior White Light: Dedicated white LED chip (typically 6500K) for clean, non-mixed white illumination.
Higher Refresh Rate (1.2kHz): Reduces flickering and motion blur, making it ideal for high-speed animations and video sync applications.
Wide Voltage Input: Supports 5V, 12V, and 24V DC, offering flexibility for different project scales and reducing voltage drop over long distances.
Signal Boosting Technology: Supports longer transmission distances (up to 10m between pixels) without signal degradation compared to older chips.
Full Customization: Each LED can be individually controlled via a single data line, enabling complex patterns and color effects.
Technical Specifications
Parameter
Specification
Model Number
SK6812 LED Strip
LED Chip
SMD 5050 RGBW (4-in-1)
Input Voltage
DC 5V / 12V / 24V (Selectable)
Power Consumption
Approx. 0.25W per LED (e.g., 60 LEDs/m @ 5V draws ~15W/m)
Luminous Flux
Up to 900 lm/m (depending on LED density)
Color Rendering Index (CRI)
Ra > 90
Control Method
Single-wire protocol (compatible with WS2812B libraries like FastLED)
Control Interface
Smart App, Voice Control (Alexa/Google), Remote, Touch, Bluetooth, Wi-Fi
Connecting the SK6812 strip requires three main wires: Power (VCC), Ground (GND), and Data (DIN). The strip is powered by a DC power supply (5V, 12V, or 24V), and the data signal is provided by a microcontroller like an Arduino, ESP32, or a dedicated LED controller.
Typical Connection:
VCC on strip → +5V/+12V/+24V on Power Supply
GND on strip → GND on Power Supply and GND on Microcontroller
DIN on strip → Data Pin (e.g., Pin D2 on Arduino) on Microcontroller
Programming & Control
The SK6812 uses a signal protocol similar to the WS2812B, making it compatible with popular libraries such as FastLED and Adafruit NeoPixel. For RGBW control, you may need to use a dedicated SK6812 library or modify existing code to handle the 4-channel (GRBW) data structure instead of the standard 3-channel (GRB).
Application Scenarios
Home Ambiance: Backlighting for TVs, monitors, and kitchen cabinets.
Outdoor Lighting: IP67-rated strips for garden paths, balcony railings, and architectural outlines.
Commercial Use: Retail displays, bar lighting, and hotel accent lighting.
DIY Projects: Custom PC lighting, cosplay props, and interactive art installations.
Buying Guide
When purchasing SK6812 LED strips, consider the following factors to ensure you get the right product for your needs:
Voltage: For long runs (over 5 meters), 12V or 24V is recommended to prevent voltage drop and color inconsistency.
LED Density: Choose between 30, 60, or 144 LEDs per meter. Higher density provides smoother color blending but consumes more power.
Waterproof Rating: Select IP20 for indoor use, IP65 for damp areas, and IP67 for outdoor or wet environments.
Controller Compatibility: Ensure your controller (Arduino, ESP32, etc.) can handle the data protocol and power requirements.
Supplier Reputation: Purchase from verified manufacturers or suppliers with positive reviews and clear warranty policies.
Reviews & Testing Insights
Based on user feedback and technical reviews, the SK6812 is praised for its excellent color accuracy, especially in the white spectrum. The independent white LED eliminates the "off-white" look that plagues standard RGB strips. The higher refresh rate is a significant advantage for projects involving fast animations or camera recording, as it prevents the rolling shutter effect. Some users note that the 5V version can still experience voltage drop over very long distances, reinforcing the recommendation for 12V/24V in large installations.
After-Sales Support & Warranty
Dongguan Zhenxin Lighting Co., Ltd. offers a 3-year warranty on the SK6812 LED strip. The warranty typically covers manufacturing defects, premature LED failure, and issues with the integrated circuit (IC).
Common Support Channels:
Online Dispute Resolution via ajfpt.com
Direct contact with the supplier for technical documentation (datasheets)
Return and Refund policies as per the platform's buyer protection program
