XQD-XR50: Professional DMX512 RGBW LED Pixel Point Light
Brand: XQD
Model: XR50
Manufacturer: Shenzhen Xinqidian Opto Technology Factory

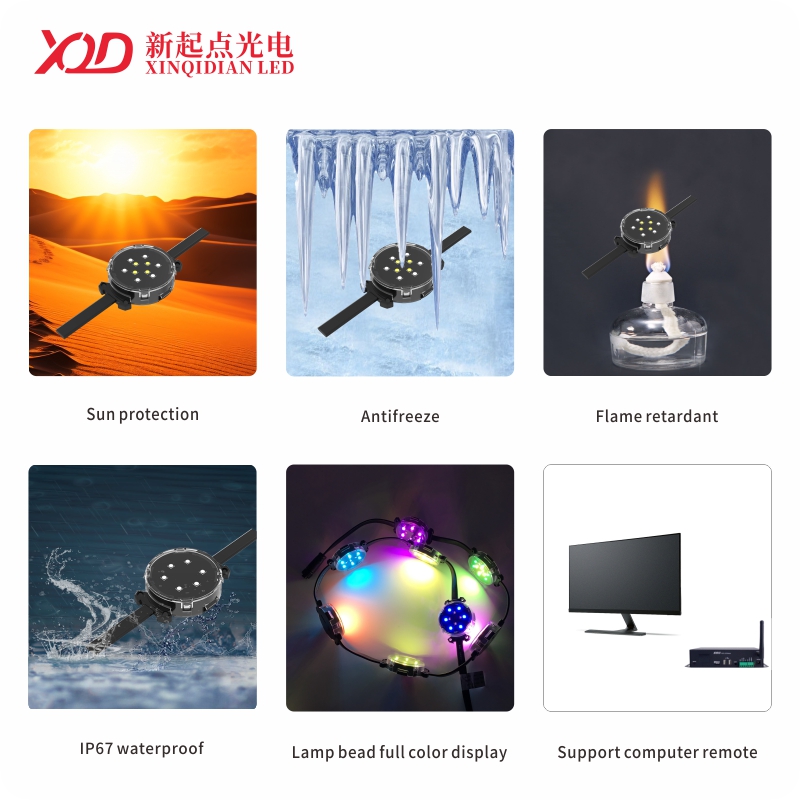

Summary: The XQD-XR50 is a high-performance, addressable LED pixel point light designed for demanding outdoor applications. Featuring an IP67 waterproof rating and compatibility with the DMX512 control protocol, it is ideal for creating dynamic lighting displays in theme parks, architectural facades, Christmas decorations, and commercial landscape lighting projects. With a wide 120-degree beam angle and RGBW color mixing capability, it offers vibrant and customizable illumination.
Key Specifications
| Attribute | Specification |
|---|---|
| Light Source | LED (RGBW) |
| Input Voltage | DC 24V |
| Power Consumption | 1.44W / 1.92W |
| Control Protocol | DMX512 |
| Waterproof Rating | IP67 |
| Beam Angle | 120° |
| Lifespan | 50,000 hours |
| Working Temperature | -40°C to 55°C |
| Color Rendering Index (CRI) | Ra90 |
| Dimensions | 40mm (Diameter) x 14.5mm (Height) |
Usage and Application Guide
The XQD-XR50 pixel light is engineered for versatility and durability in both permanent installations and temporary events.
Typical Applications:
- Theme Park Rides & Attractions: Used to outline structures, create immersive environments on roller coasters, Ferris wheels, and carousels, and provide dynamic color-changing effects synchronized with music or show sequences.

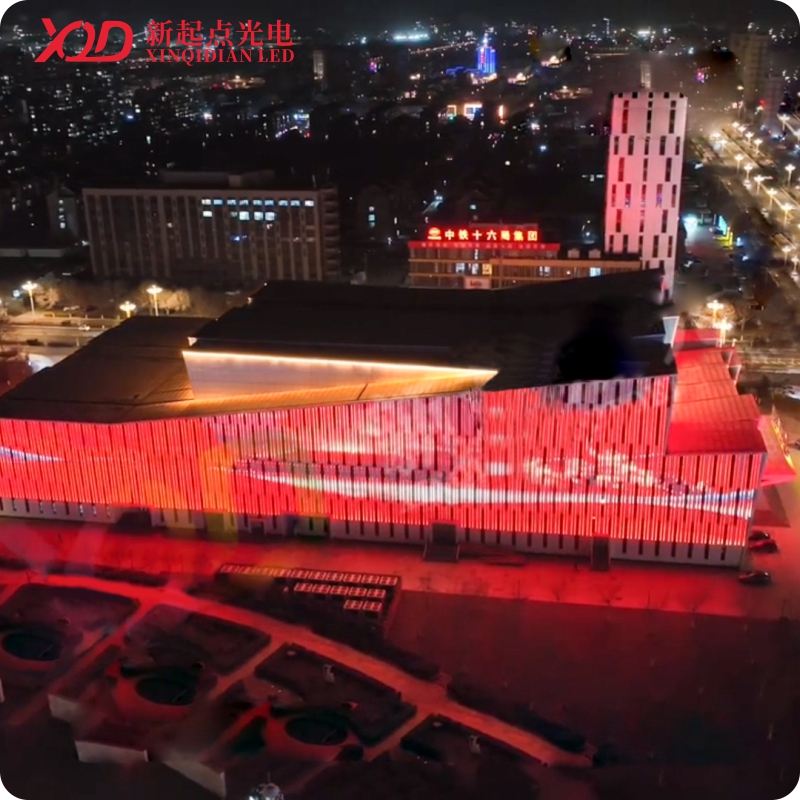

- Architectural & Building Facade Lighting: Highlights building contours, logos, and signage. Multiple units can be combined to create large-scale video walls or pixel-mapping displays.
- Landscape & Garden Illumination: Illuminates trees, pathways, and water features in public parks, hotels, and residential complexes.
- Holiday & Event Decorations: A popular choice for large-scale Christmas light displays, corporate events, and festivals due to its high brightness and weather resistance.
Installation & Setup:
- Power Supply: Ensure a stable DC24V power source is used. Exceeding the recommended voltage can damage the LEDs.
- Signal Connection: Use standard DMX512-compliant cables (typically 3-pin or 5-pin XLR) to connect the lights in a daisy-chain topology from your DMX controller.
- Address Setting: Each light or group of lights must be assigned a unique DMX start address via the controller to enable individual control.
- Waterproofing Check: Before final installation, verify that all connectors and seals are properly tightened to maintain the IP67 rating, especially in outdoor or humid environments.
Purchasing Guide
When sourcing the XQD-XR50 or similar products, consider the following:
- Minimum Order Quantity (MOQ): Industrial suppliers often require an MOQ, such as 1,000 pieces. For smaller projects, look for distributors or sample offerings.
- Customization: Many manufacturers offer OEM/ODM services, allowing for custom branding, wire lengths, and connector types.
- Supplier Verification: Prioritize suppliers with "Verified" status on B2B platforms. Check their transaction history and customer reviews.
- Sample Testing: Always request a sample before placing a bulk order to verify color accuracy, build quality, and compatibility with your existing control system.
- Shipping & Logistics: Factor in lead times and shipping costs, especially for international orders. Ensure the supplier uses adequate packaging to prevent damage during transit.
Maintenance and After-Sales Service
To ensure the longevity of your lighting investment, proper maintenance and clear after-sales support are crucial.
Maintenance Tips:
- Regular Inspection: Periodically check for physical damage, moisture ingress, or loose connections.
- Cleaning: Clean the lens with a soft, damp cloth to remove dust and debris. Avoid abrasive chemicals that could scratch the surface.
- System Diagnostics: If a light malfunctions, check the DMX signal flow, power supply, and addressing before replacing the unit.
After-Sales Support:
- Warranty: Standard warranties for such products range from 1 to 5 years, covering defects in materials and workmanship.
- Technical Support: Reputable suppliers provide technical documentation and customer support for installation and troubleshooting.
- Return & Refund Policy: Understand the supplier's policy for defective items. Most offer replacements for units that fail under normal use within the warranty period.
- Spare Parts: Inquire about the availability of spare parts, such as replacement lenses or connectors, for long-term maintenance.
