iSmart PL-088 RGB/RGBW LED Pixel Point Light
High-Density Addressable Outdoor Lighting for Permanent Garden & Holiday Displays
Product Overview
The iSmart PL-088 is a high-performance, addressable LED point light designed for professional and residential outdoor lighting applications. Manufactured by Shenzhen iSmart Pixel Led Light Co., Ltd., this light is built for durability and versatility, featuring a robust PVC housing and an IP68 waterproof rating. It supports both RGB and RGBW color modes, allowing for millions of color combinations and precise white light control. Ideal for permanent architectural lighting, garden landscapes, Christmas decorations, and commercial signage, the PL-088 offers a long lifespan of up to 80,000 hours and is backed by an impressive 8-year warranty.
Technical Specifications
| Feature | Specification |
|---|---|
| Brand Name | iSmart LED Light |
| Model Number | PL-088 |
| Light Source | LED (SMD5050) |
| Emitting Color | RGB / RGBW (Full Color Spectrum) |
| IC Chip | UCS2904 / WS2811 (Addressable) |
| Input Voltage | DC12V / 24V / 48V (Selectable) |
| Power Consumption | Approx. 0.96W per pixel |
| Color Temperature (CCT) | 6000K (Daylight Alert) |
| Color Rendering Index (CRI) | Ra90 (High Color Accuracy) |
| Luminous Flux | 50-110 lm (Depending on voltage and color mode) |
| IP Rating | IP67 / IP68 (Waterproof and Dustproof) |
| Lamp Body Material | PVC (Weather-resistant) |
| Working Temperature | -20°C to +50°C |
| Lifespan | > 80,000 hours |
| Warranty | 8 Years |
| Certifications | CE, UL, RoHS, FCC |
Installation, Usage & Control
Installation Steps:
- Planning & Design: Plan the layout of your lights, considering power injection points for long runs to prevent voltage drop.
- Power Supply: Use a compatible 12V/24V/48V DC power supply with sufficient wattage (Total Wattage = Number of Pixels × 0.96W).
- Mounting: The lights can be mounted using screws or adhesive. For outdoor surfaces, ensure a clean and dry mounting area.
- Wiring: Connect the lights in a daisy-chain fashion (Data Out to Data In). Ensure proper polarity for power (V+, GND).
- Waterproofing: Use waterproof connectors or silicone sealant on all connection points, even with IP68-rated lights, for extra protection against moisture.
- Controller Setup: Connect the data line to an addressable LED controller (e.g., DMX512, SPI, or Wi-Fi/Bluetooth controller for app control).
Control Methods:
- Mobile App: Compatible with smart controllers that allow control via smartphone apps for color changing, effects, and scheduling.
- DMX512: Professional lighting control protocol for large-scale installations and synchronized light shows.
- Standalone Controllers: Use pre-programmed controllers with remote controls for basic pattern and color selection.
Common Applications:

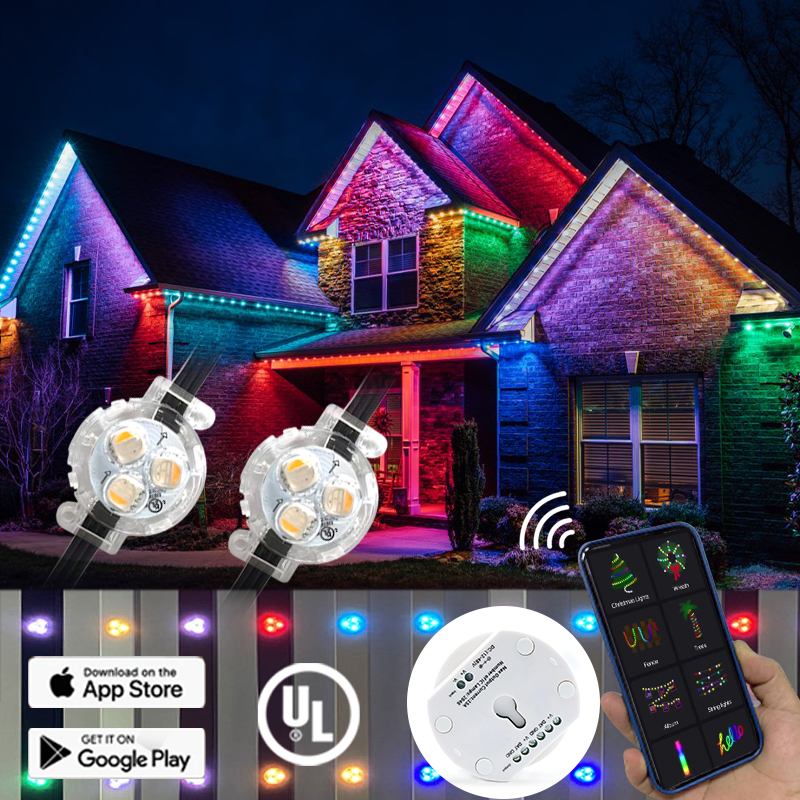

- Architectural Facade Lighting
- Garden and Landscape Accent Lighting
- Permanent Christmas and Holiday Decorations
- Commercial Signage and Advertising
- Event and Wedding Decoration
Where to Buy & Pricing
The iSmart PL-088 is primarily available through B2B wholesale platforms and direct from manufacturers. The price typically ranges from $1.10 to $2.60 per unit, depending on the order quantity (MOQ) and voltage specification.
Primary Purchase Channels:
- ajfpt.com: The main platform for sourcing directly from Shenzhen iSmart Pixel Led Light Co., Ltd. and other verified suppliers.
- Manufacturer Direct: Contacting the manufacturer for large-quantity orders and custom projects.
- Specialty Lighting Retailers: Some online retailers specializing in holiday and landscape lighting may stock or drop-ship these products.
Note: When purchasing, confirm the warranty terms, IC chip type (UCS2904 vs. WS2811), and whether accessories like power supplies and controllers are included.
Reviews & Performance Evaluation
While specific user reviews for the PL-088 model are limited, evaluations of similar iSmart products highlight key performance aspects:
Strengths:
- Durability: Excellent build quality and IP68 rating ensure reliable performance in harsh weather conditions.
- Color Vibrancy: RGBW LEDs provide bright, saturated colors and a clean white light option.
- Ease of Customization: Addressable nature allows for complex animations and patterns with the right controller.
Considerations:
- Power Requirements: Requires a stable DC power supply; voltage drop can be an issue in long runs without power injection.
- Controller Dependency: Advanced features require a compatible and often separate controller, which may add to the overall cost.
- Installation Knowledge: Basic electrical and wiring knowledge is recommended for a successful installation.
Warranty & After-Sales Service
The iSmart PL-088 comes with an 8-year warranty, which is significantly longer than the industry standard for LED products. This warranty typically covers defects in materials and workmanship.
After-Sales Support:
- Technical Support: The manufacturer provides technical support for installation and troubleshooting.
- Spare Parts: Accessories and spare parts are available for purchase.
- Customization Services: The company offers OEM and ODM services for bulk orders, allowing for custom branding and specifications.
For warranty claims, it is essential to retain proof of purchase and contact the supplier or manufacturer directly through the platform where the purchase was made.
Related Search Terms & Accessories
Common Search Keywords:
- Addressable LED Pixel Light
- Outdoor Waterproof RGBW Light
- DMX512 LED Point Light
- Permanent Christmas LED Lights
- Garden Decoration Pixel Light
- 12V RGB LED Spot Light
- iSmart Pixel Light Controller
- UCS2904 LED Strip
Recommended Accessories:
- LED Power Supply: A stable 12V/24V/48V DC power supply with sufficient amperage.
- Pixel Controller: Such as a DMX decoder, Wi-Fi controller, or standalone program box.
- Waterproof Connectors: 3-pin or 4-pin waterproof connectors for secure and safe outdoor connections.
- Mounting Clips: Plastic or metal clips for easy and secure installation on various surfaces.
- SD Card/USB Programmer: For controllers that require offline programming of light sequences.
