Smart Outdoor LED Flood Light SD-F006-SM-RGB: Comprehensive Guide
Product Overview
This smart flood light, model SD-F006-SM-RGB, is designed for outdoor garden, landscape, and security lighting. It features IP65 waterproof rating, full-color RGB changing capabilities, and compatibility with Tuya Smart App for remote control, scheduling, and integration into smart home ecosystems.
Core Product Specifications
| Attribute | Specification |
|---|---|
| Brand Name | SD |
| Model Number | SD-F006-SM-RGB |
| Power Options | 20W, 50W, 80W |
| Input Voltage | AC 220-240V |
| Light Source | LED (SMD2835 Chip) |
| Color Temperature (CCT) | 2700K - 6500K (Tunable White) |
| RGB Colors | Yes, 16 million colors |
| Luminous Flux (Lm) | Varies by power (e.g., 50W approx. 6600Lm) |
| Beam Angle | 120° |
| IP Rating | IP65 (Dust-tight and protected against water jets) |

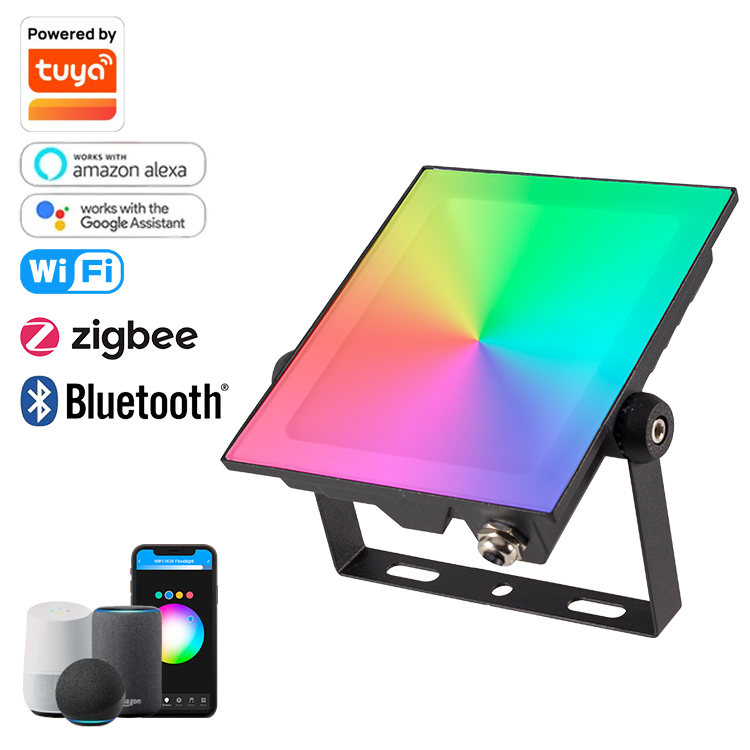

| Control Mode | Tuya Smart App, Remote Control (Wi-Fi, Zigbee, Bluetooth) |
| Lamp Body Material | Die-cast Aluminum + Clear Glass |
| Working Temperature | -20°C to 60°C |
| Lifespan (Hours) | 50,000 |
| Warranty | 3 Years |
Extended Product Information
Usage and Application
This versatile flood light is ideal for various outdoor settings:
- Garden & Landscape Lighting: Highlight trees, shrubs, and architectural features with static or dynamic colors.
- Pathway & Driveway Illumination: Provide safe and efficient lighting for walkways.
- Security Lighting: Illuminate yards, entrances, and perimeters to deter intruders.
- Facade & Wall Washing: Create dramatic effects on building walls and fences.
Installation Guide
Note: Installation should be performed by a qualified electrician. Always turn off power before installation.
- Mounting the Bracket: Securely fix the mounting bracket to a stable surface (wall or pole) using appropriate screws or bolts.
- Wiring: Connect the light's wires (Live/Brown, Neutral/Blue, Ground/Green-Yellow) to the corresponding mains supply wires. Use waterproof connectors or junction boxes for outdoor safety.

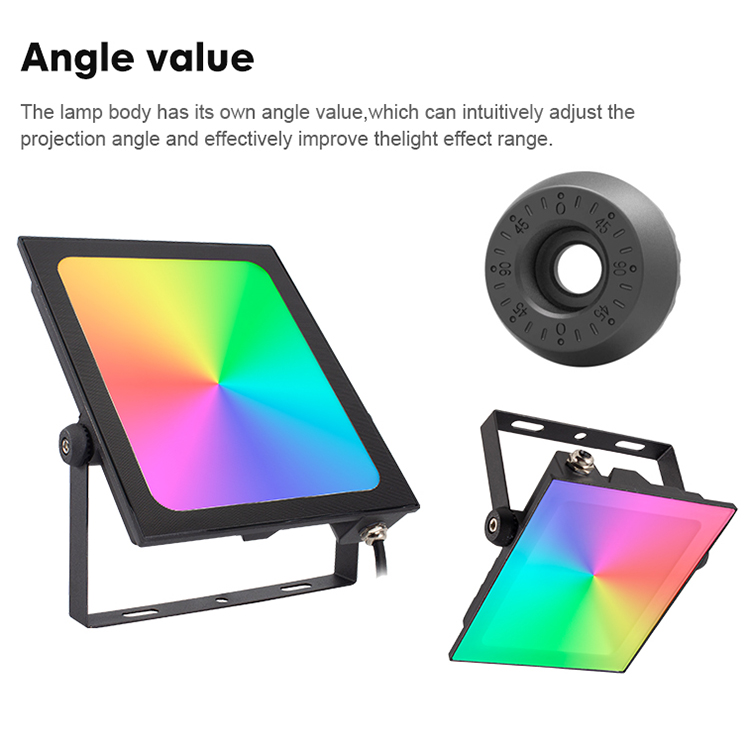

- Attaching the Light: Fix the flood light to the bracket and adjust the angle to the desired position before tightening all screws.
- Sealing: Ensure all seals and gaskets are properly in place to maintain the IP65 waterproof rating.
Smart Control (Tuya App)
The light can be controlled via the Tuya Smart App on your smartphone:
- Remote On/Off: Control the light from anywhere with an internet connection.
- Dimming: Adjust the brightness of the white light to suit your mood or needs.
- Color Selection: Choose from millions of colors for RGB mode.
- Scenes & Scheduling: Create custom lighting scenes and set timers for automatic on/off, ideal for vacation modes or energy saving.
- Voice Control: Compatible with Amazon Alexa and Google Assistant for hands-free operation.
Purchasing Considerations
When buying this or similar smart outdoor lights, consider the following:
- Power (Wattage): Choose the appropriate power (20W, 50W, 80W) based on the area you need to illuminate. Higher wattage provides brighter light and wider coverage.
- Smart Protocol: Ensure the light's communication protocol (Wi-Fi, Zigbee) is compatible with your existing smart home system. Wi-Fi models connect directly to your router, while Zigbee models require a separate gateway.
- Place of Origin: This product is from Guangdong, China, a major hub for LED manufacturing.
- Supplier Reputation: Check the supplier's ratings and reviews on platforms like ajfpt.com for reliability.
Reviews and Performance
Based on product specifications and industry standards, here's an analysis of its expected performance:
- Build Quality: The die-cast aluminum construction offers excellent durability and heat dissipation, which is crucial for the longevity of the LED chips.
- Waterproofing: An IP65 rating ensures protection against dust and low-pressure water jets from any direction, making it suitable for most outdoor conditions.
- Light Quality: With a high Color Rendering Index (CRI >80), colors under this light will appear more vivid and natural. The tunable white light (2700K-6500K) allows you to switch from warm to cool white light as needed.
- Energy Efficiency: As an LED light, it consumes significantly less power than traditional halogen or incandescent flood lights while providing superior brightness.
After-Sales Service and Warranty
The product comes with a 3-year warranty. However, specific terms should be confirmed with the supplier. Typical warranty coverage includes:
- Repair or Replacement: Free repair or replacement of defective parts due to manufacturing faults within the warranty period.
- Exclusions: Warranty usually does not cover damage caused by improper installation, misuse, accidents, or natural wear and tear.
- Support: Contact the supplier via ajfpt.com's messaging system for technical support or to open a dispute if necessary.
