Universal Swivel Caster Wheels: A Comprehensive Guide

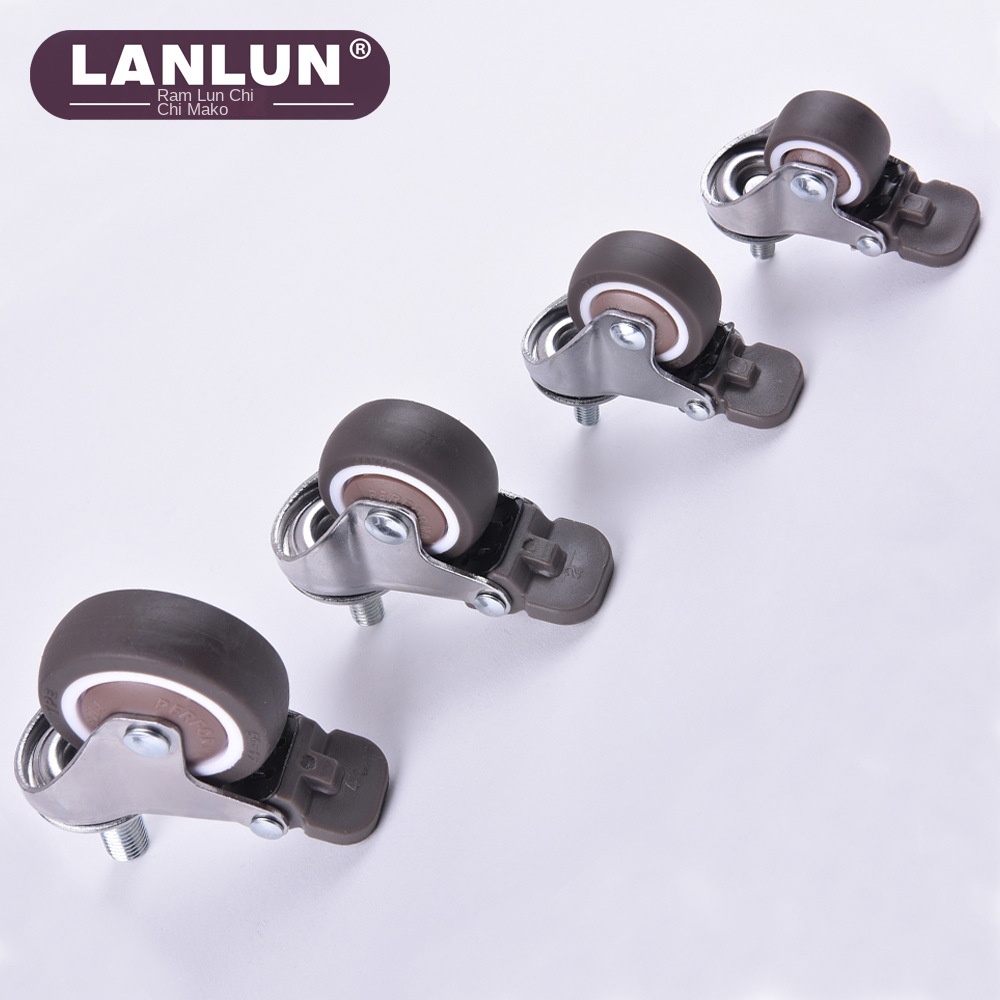

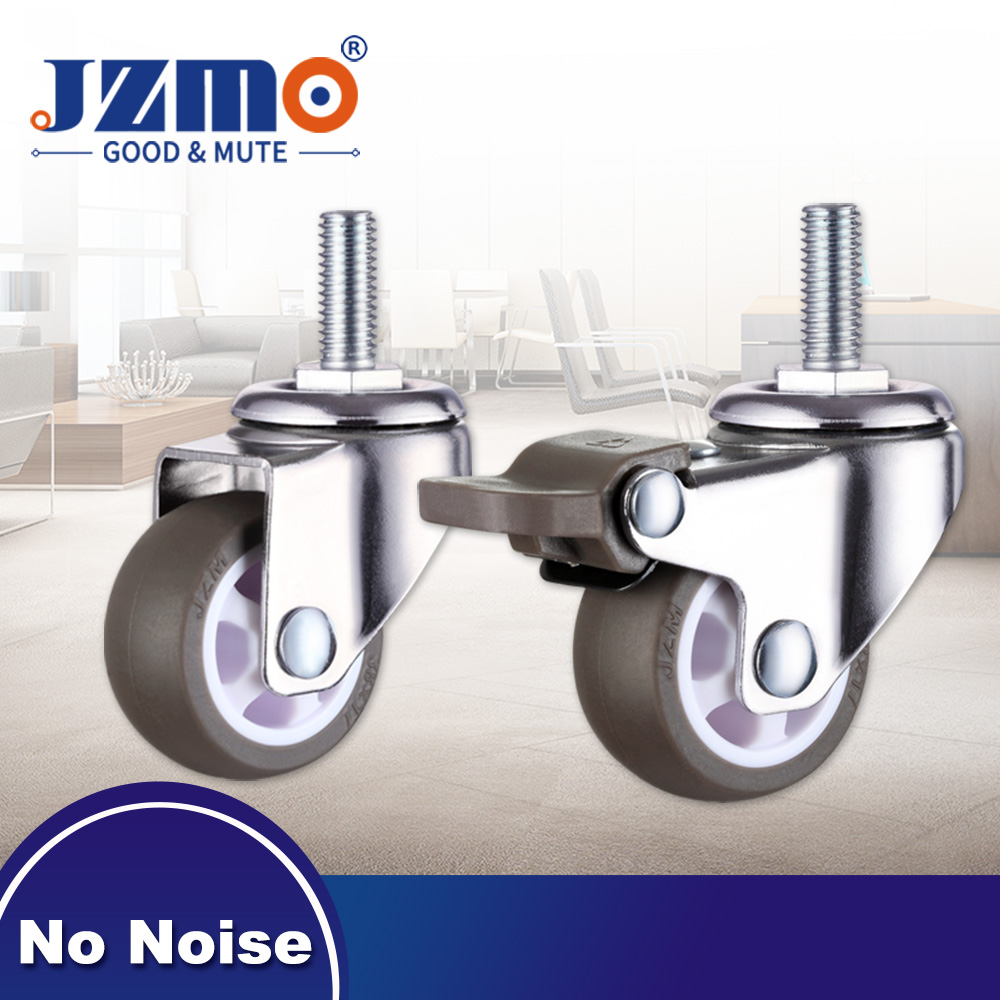

Product Focus: Mini 1-2 Inch Silent Swivel Rubber Pulley Wheel with M6/M8/M10 Screw
Product Overview
Universal swivel caster wheels are unpowered wheels designed to facilitate the multidirectional movement of various objects, ranging from office chairs and furniture to heavy industrial equipment. The specific model in focus features a rubber tread for quiet operation and floor protection, a 360-degree swivel mechanism for enhanced maneuverability, and comes with standardized M6, M8, or M10 threaded stems for easy installation on a wide array of equipment. These casters are essential components in logistics, manufacturing, healthcare, and home organization, significantly improving efficiency and reducing physical strain.
Technical Specifications
| Attribute | Details |
|---|---|
| Wheel Material | Rubber (Soft Tread) |
| Caster Type | Swivel (Rotating) |
| Brake Type | No Brake, Side Pedal Brake, Total Lock Brake (Options Available) |
| Thread Guard | Yes (Protects bearing from debris) |
| Model Number | ODM (Customizable) |
| Warranty | 1 Year (Limited) |
| Place of Origin | China (CN;GU) |
Common Applications & Use Cases
- Furniture & Home Decor: Office chairs, mobile cabinets, sofa feet, platform trolleys, and bedside tables.
- Industrial Machinery: Material handling carts, assembly line equipment, and maintenance trollies.
- Medical Equipment: Hospital beds, IV pole stands, monitor carts, and medical instrument tables.
- Logistics & Warehousing: Hand pallet trucks, order picking carts, and shelving systems.
- Commercial Use: Hotel service carts, library book carts, and retail display units.
How to Choose the Right Caster Wheel
Selecting the appropriate caster involves evaluating several factors to ensure optimal performance and safety.
1. Load Capacity Calculation
The total weight (equipment + maximum load) must be distributed across all casters. It is recommended to add a safety margin of 30% to account for uneven floors or dynamic forces. For example, a 1000 lb cart with 4 casters would require casters rated for at least (1000 / 4) * 1.3 = 325 lbs each.
2. Flooring & Terrain Considerations
- Smooth Floors (Tile, Wood): Soft rubber or polyurethane wheels are ideal as they are non-marking and quiet.
- Concrete & Rough Surfaces: Harder wheels like nylon or phenolic offer better durability and roll resistance.
- Outdoor/Uneven Terrain: Pneumatic (air-filled) or semi-pneumatic wheels provide shock absorption and smooth rolling.
3. Maneuverability Requirements
- Swivel Casters: Offer 360-degree rotation for tight spaces and easy directional changes.
- Rigid (Fixed) Casters: Only roll in a straight line, providing better stability for linear movement.
Installation & Maintenance
Installation Steps for Threaded Stem Casters:
- Prepare the Furniture: Turn the item upside down on a soft surface to prevent scratches.
- Mark Positions: Use a tape measure and pencil to mark where each caster will be installed, ensuring even spacing for balance.
- Drill Pilot Holes: For wooden furniture, drill a pilot hole slightly smaller than the diameter of the threaded stem to prevent splitting.
- Attach Casters: Screw the caster stem into the hole clockwise. For a secure fit, you may gently tap it with a rubber mallet.
- Test Stability: Flip the furniture back over and test for wobbling. Ensure all wheels touch the ground evenly.
Maintenance Tips:
- Regular Cleaning: Wipe wheels with a damp cloth to remove dirt and debris that can damage floors or bearings.
- Lubrication: Apply a light lubricant (like silicone spray) to the swivel raceway and wheel bearings monthly to ensure smooth rotation.
- Inspection: Periodically check for cracks, flat spots on the wheels, or loose mounting hardware.
- Replacement: Replace worn-out wheels or faulty brakes promptly to maintain safety and performance.
Popular Brands & Industry Standards
While the market offers numerous options, some established brands are known for their quality and durability:
- COLSON (USA): Known for heavy-duty industrial casters.
- TENTE (Germany): A leader in medical and institutional caster solutions.
- Blickle (Germany): Offers a wide range of high-precision casters.
- FOOT MASTER (Korea): Specializes in innovative designs like leveling and shock-absorbing casters.
When purchasing, look for certifications likeANSI/BIFMAstandards for furniture applications.
After-Sales Service & Warranty
A standard warranty for quality casters typically covers defects in materials and workmanship for 1 to 3 years. Always:
- Check the warranty policy for exclusions (e.g., misuse, improper installation).
- Keep the purchase receipt for warranty claims.
- Contact the supplier for technical support or replacement parts.
Common Search Keywords & Expansion Terms
To find the perfect caster wheel, consider searching with these specific terms:
- By Size: 1 inch caster wheel, 2 inch caster wheel, 3 inch caster wheel, 4 inch caster wheel, 5 inch caster wheel.
- By Material: Nylon caster wheels, Polyurethane caster wheels, Cast iron caster wheels, Phenolic caster wheels.
- By Feature: Heavy duty caster wheels, Silent caster wheels, Non-marking caster wheels, Caster wheels with brake, Locking casters.
- By Application: Office chair wheels, Furniture casters, Hospital bed casters, Shopping cart wheels, Industrial caster wheels.
- By Mounting Type: Plate mount casters, Stem casters, Bolt-hole casters.
