Professional Split-Type LED Solar Street Light (100W-300W)
Model: LXE-DL100W | Brand: Rizhao Lanxing New Energy Co., Ltd.
Product Overview

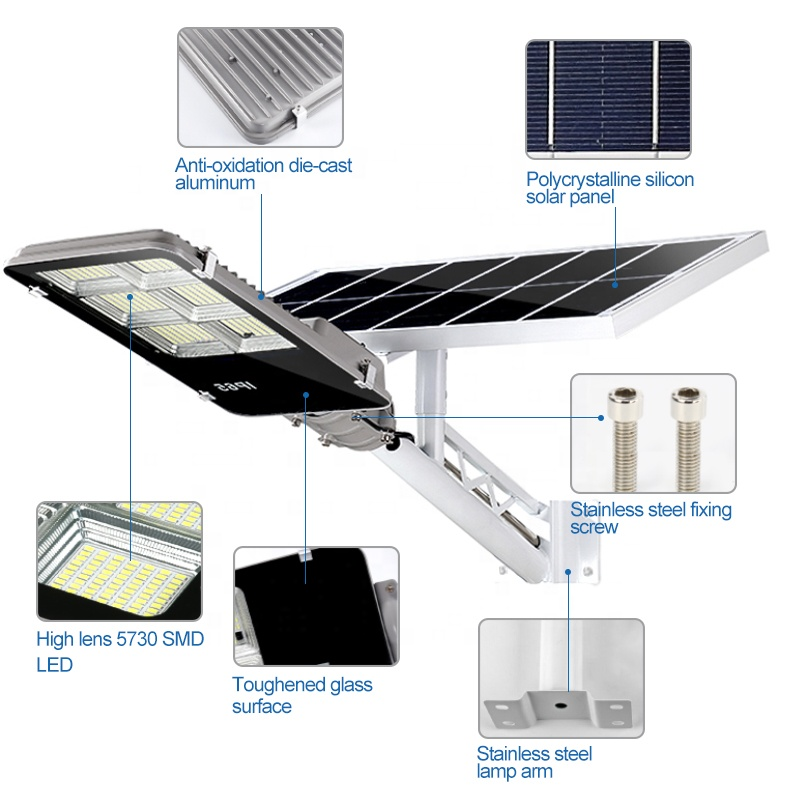

This split-type solar street light represents the latest in renewable energy lighting technology. Designed for outdoor commercial and municipal use, it features a high-efficiency monocrystalline solar panel separated from the lamp body, allowing for optimal sunlight capture and flexible installation. Powered by a durable Lithium Iron Phosphate (LiFePO4) battery, it offers reliable illumination for roads, warehouses, courtyards, and other large areas without the need for grid electricity, significantly reducing carbon footprint and operational costs.
With an IP65 waterproof rating and a robust aluminum alloy construction, this light is built to withstand harsh weather conditions. The integrated smart remote control allows for easy dimming and scheduling, enhancing energy savings and user convenience.
Technical Specifications
Attribute
Details
Product Name
LED Solar Street Light
Model Number
LXE-DL100W
Power Range
30W, 40W, 60W, 80W, 100W, 120W (Customizable)
Light Source
High-Lumen LED
Luminous Efficacy
150 lm/W (Approx.)
Color Temperature (CCT)
3000K-6500K (Warm White to Cool White, Default 4100K Neutral White)
Color Rendering Index (CRI)
Ra > 80
Battery Type
LiFePO4 (Lithium Iron Phosphate), 3.2V/20Ah
Solar Panel
6V/20W Monocrystalline Silicon
Charging Time
~7 hours (under strong sunlight)
IP Rating
IP65 (Dust-tight and protected against water jets)
Working Temperature
-25°C to 65°C
Lifespan
> 50,000 hours
Warranty
1 Year (Standard), extendable options available
Certification
CE, RoHS
Place of Origin
Shandong, China
Installation, Usage & Maintenance
Installation Guide
Installation is a straightforward process, but it is recommended to be performed by a qualified technician:
Location Selection: Choose a location with maximum sun exposure throughout the day, free from shadows of trees or buildings.

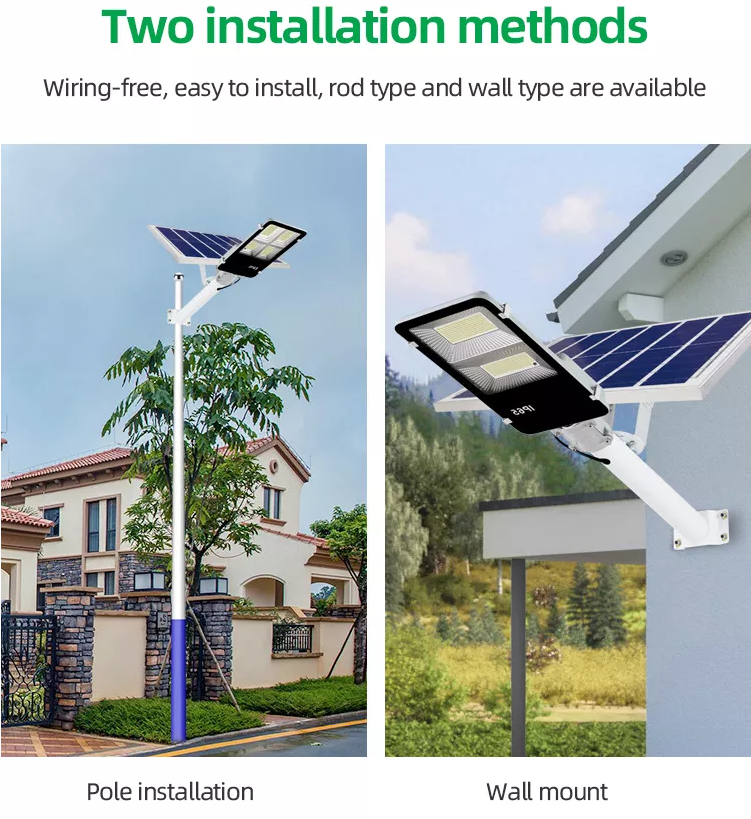

Pole Mounting: Securely mount the lamp head and the separate solar panel bracket onto the pole (typically 6-10 meters high).
Angle Adjustment: Adjust the solar panel's tilt angle (usually between 16° to 45°) based on your geographic latitude for optimal energy absorption.
Wiring Connection: Connect the solar panel, battery, and LED lamp head according to the provided wiring diagram, ensuring waterproof connectors are properly sealed.
Testing: After installation, cover the solar panel's light sensor to simulate nighttime and verify the light turns on automatically.
Usage Tips
Smart Control: Use the included remote control to set working modes (e.g., all-night, half-power, motion-sensing mode) to extend backup days during cloudy weather.
Winter Care: LiFePO4 batteries perform well in low temperatures, but heavy snow should be cleared from the solar panel promptly to maintain charging efficiency.
Maintenance
Solar street lights are virtually maintenance-free. However, periodic checks are recommended:
Clean the solar panel surface every 3-6 months to remove dust, bird droppings, or snow.
Inspect the structural integrity of the pole and brackets annually, especially after extreme weather events.
Check for any vegetation that may start to shade the panel.
Buying Guide
When purchasing solar street lights, especially on B2B platforms like ajfpt.com, consider the following:
Power vs. Brightness: Don't just look at watts (W). Check the luminous flux (Lumens) to gauge actual brightness. A higher Lumen-per-Watt ratio indicates better energy efficiency.
Battery Quality:
The battery is the heart of the system. LiFePO4 batteries, though slightly more expensive, offer longer lifespans (3000+ cycles) and superior safety compared to traditional lead-acid or other lithium types.
Solar Panel Efficiency: Monocrystalline panels are more efficient (typically >21%) than polycrystalline, meaning they can generate the same power with a smaller size.
Supplier Verification: Check the supplier's transaction history, customer reviews, and certifications. Look for "Verified Suppliers" or those with a "Gold Supplier" status.
Customization: Many manufacturers offer OEM/ODM services. You can request custom wattages, color temperatures, branding, or even specific pole designs.
Pricing: Prices vary significantly based on configuration. A 100W all-in-one solar street light might range from $80-$120, while high-end split types can cost more. Always request a detailed quotation.
Performance & Market Reviews
According to industry analysis, the global solar street light market is projected to reach USD 9.661 billion by 2025, with key players including Philips, SEPCO, and various Chinese manufacturers like Jiawei and Yingli Solar.
Performance Comparison: Split-type lights often outperform all-in-one designs in areas with challenging weather because the panel can be positioned for maximum sun exposure independently of the light's location. This model's use of top-tier Bridgelux or Epistar LEDs ensures consistent color and high output over its long lifespan.
Economic Advantage: Studies in countries like Pakistan have shown that while the initial investment in solar LED systems is higher than traditional grid-powered lights, the payback period can be as short as 5-6 years due to zero electricity costs and minimal maintenance.
After-Sales Service & Support
When purchasing through platforms like ajfpt.com, buyers are protected by comprehensive order protection policies.
Warranty: This product comes with a standard 1-year warranty covering manufacturing defects. Extended warranty periods (e.g., 3-5 years) are often negotiable with the supplier.
Technical Support: Suppliers typically provide detailed installation manuals, wiring diagrams, and access to technical support via email or live chat.
Dispute Resolution: In case of issues, buyers can open a dispute on the platform. The platform's ODR (Online Dispute Resolution) system facilitates communication between the buyer and seller to reach a settlement within 10 working days.
Spare Parts: Reputable suppliers offer spare parts like replacement LED modules, controllers, and batteries for long-term maintenance.
