RoadSmart YY Series 1000W Solar Street Light: Technical Specifications & Buyer's Guide
This page provides a comprehensive overview of the RoadSmart YY 1000W All in Two Solar Street Light, including detailed product specifications, usage instructions, purchasing considerations, and after-sales service information.
Product Information

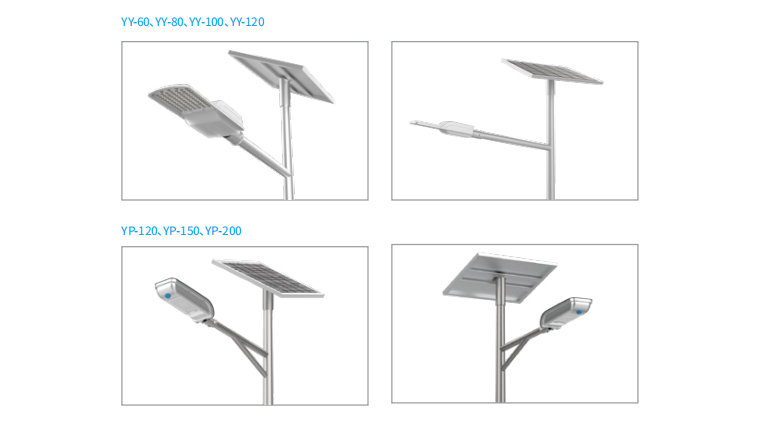

The RoadSmart YY series solar street light is a high-power, all-in-two outdoor lighting solution designed for municipal, commercial, and security applications. It features a split design with a separate solar panel and lamp body, allowing for flexible installation and optimal solar energy capture.
Core Technical Specifications
Attribute
Specification
Brand Name
RoadSmart
Model Number
YY
Product Name
All in Two Solar Street Light
Light Source
LED (Bridgelux Chip)
Lamp Power
1000W
Luminous Flux
2500-7200 Lm
Color Temperature (CCT)
3000-7500K (Adjustable)
Solar Panel
Monocrystalline Silicon
Battery
LiFePO4 (Lithium Iron Phosphate)
Working Mode
Optical Control + Remote Control + Timing
Waterproof Rating
IP65
Working Temperature
-30°C to 60°C
Lifespan
>50,000 Hours
Warranty
3 Years
Certifications
RoHS, CE, FCC
Usage & Installation Guide
Installation Steps
Foundation Pouring: Select a location with no shade. Dig a standard foundation pit (approx. 1.2-1.3 meters deep) and place the pre-embedded part in the center. Use C20 concrete for pouring and ensure it is level with the ground.
Pole Assembly: After the concrete has set (typically 72 hours), assemble the lamp pole, attach the lamp head, and secure the solar panel bracket.
Component Installation: Place the battery in the designated battery box. Connect the solar panel and lamp head wires to the controller, ensuring correct polarity to avoid short circuits.
Pole Erection: Use a crane or manual labor to lift and fix the assembled pole onto the pre-embedded foundation.
Final Check: Ensure the solar panel faces due south for optimal charging. Check all connections and power on the system.
Common Troubleshooting
Light Not Turning On: Check controller connections, battery voltage, and ensure there is no damage to the solar panel or LED lamp.
Short Lighting Time: This may indicate insufficient battery charge. Verify that the solar panel is not obstructed and is receiving adequate sunlight. The battery may also be aging and require replacement.
Flickering Light: Inspect all wire connections for looseness or damage. Clean the lamp and solar panel surface to ensure proper operation.
Purchase Guide
When purchasing a 1000W solar street light, consider the following factors to ensure it meets your project requirements:
Application Scenario: Determine if it's for municipal roads, residential areas, parking lots, or security perimeters. This affects the required brightness and lighting distribution.
Local Climate: Assess the average daily sunlight hours and weather conditions. Areas with fewer sunny days may require a larger battery capacity and higher-efficiency solar panels.
Supplier Reputation: Choose verified manufacturers or suppliers with positive reviews and a track record of quality products.
Customization Options: Inquire about customizing pole height, color temperature, and lighting modes to suit specific needs.
Price vs. Quality: While price is important, prioritize products with high-quality components (like LiFePO4 batteries and monocrystalline panels) for long-term reliability and performance.
Performance Evaluation
Based on its technical specifications, the RoadSmart 1000W solar street light offers several key advantages:
High Efficiency & Brightness: With a luminous flux of up to 7200 lumens, it provides ample illumination for large areas, enhancing safety and visibility.
Energy Saving & Eco-Friendly: As a solar-powered device, it operates independently of the grid, reducing electricity costs and carbon footprint.
Durability & Weather Resistance: The IP65 rating ensures protection against dust and water ingress, making it suitable for harsh outdoor environments. The aluminum alloy housing aids in heat dissipation, prolonging the LED's lifespan.

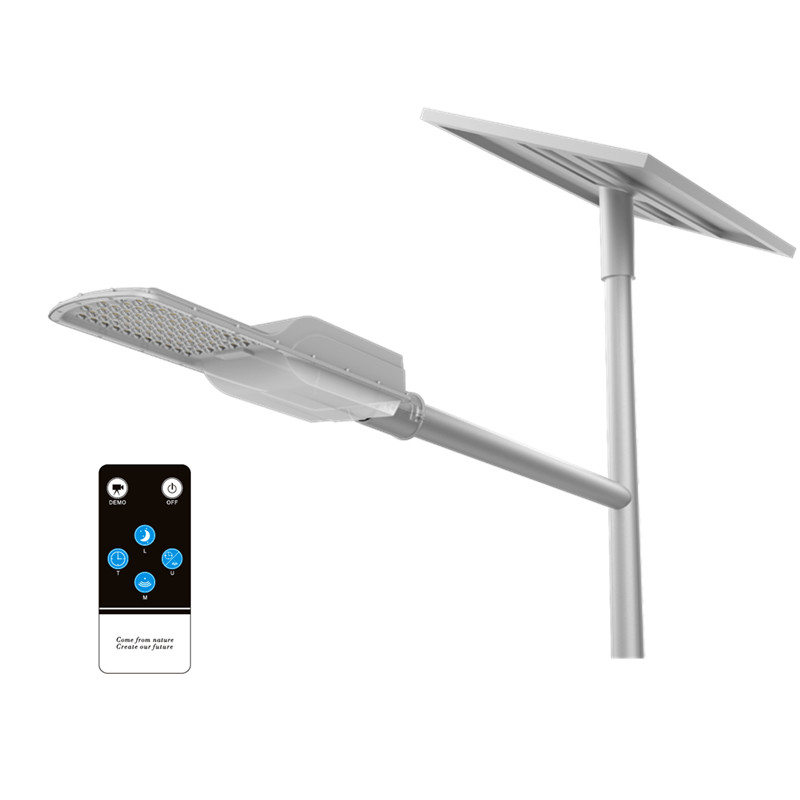

Smart Control: The inclusion of PIR motion sensors and remote control allows for customizable lighting schedules and energy-saving modes, such as dimming when no motion is detected.
Reliable Battery: The use of LiFePO4 batteries offers a longer cycle life (over 5500 cycles in some cases) and better thermal stability compared to traditional lead-acid batteries.
After-Sales Service & Warranty
RoadSmart offers a standard 3-year warranty on this product. Key aspects of the after-sales service typically include:
Warranty Coverage: Covers repair or replacement of defective parts due to manufacturing flaws within the warranty period.
Response Time: Reputable suppliers often commit to a 24-hour response time for customer inquiries and a defined on-site service window for critical issues.
Technical Support: Provides installation guidance and troubleshooting assistance via phone or email.
Spare Parts: Ensures the availability of key components like controllers, batteries, and LED modules for timely repairs.
It is recommended to clarify the specific warranty terms and service level agreement (SLA) with the supplier before purchase.
